Teknik Özellikler

Model Number
MDF-MU539HL-PE
External dimensions (W x D x H)
mm
793 x 770 x 1802
Internal dimensions (W x D x H)
mm
649 x 614 x 1262
Volume
litres
504
Net weight
kg
144
Performance
Cooling performance
°C
-30
Temperature setting range
°C
-18 to -35
Temperature control range
°C
-20 to -30
Control
Controller
Microprocessor, non-volatile memory
Display
LED
Temperature sensor
Thermistor
Refrigeration
Refrigeration system
Direct
Compressors
W
400 (inverter control)
Refrigerant
HC
Insulation material
PUF
Insulation thickness
mm
70
Construction
Exterior material
Painted Steel
Interior material
Painted Steel
Outer door
qty
2

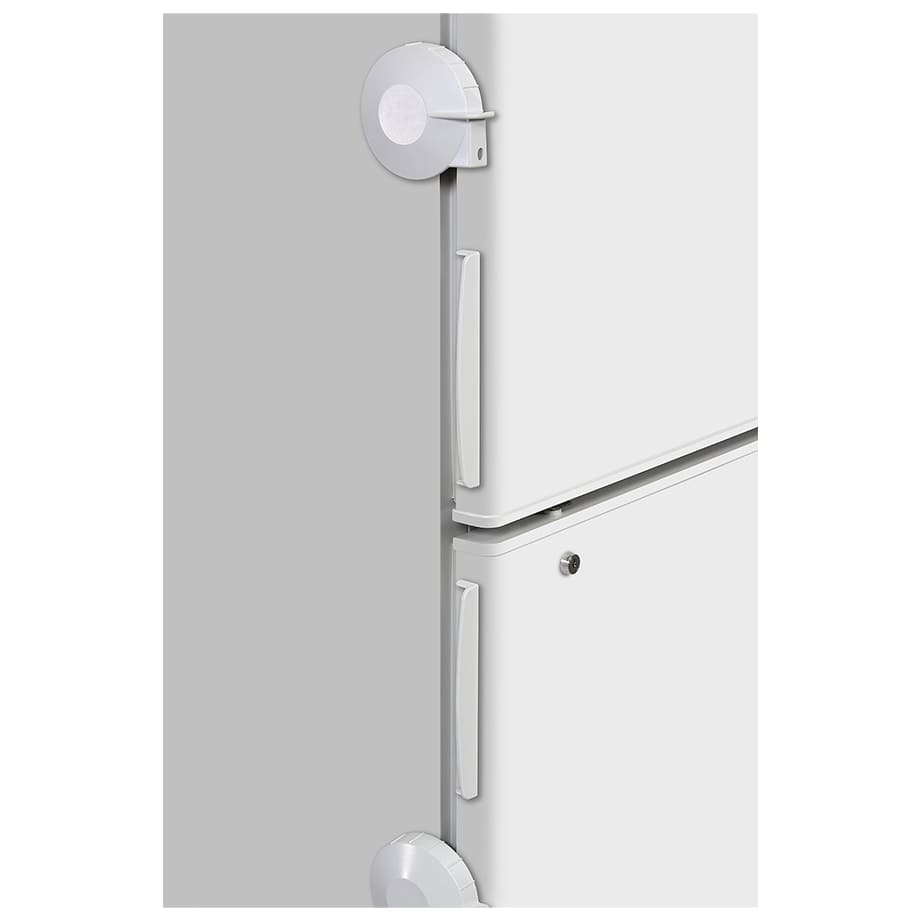

Outer door lock
Yes
Shelves
qty
6
Max. load - per shelf
kg
30
Access port
qty
1
- position
Back
- diameter
Ø mm
30
Casters
qty
4 [2 levelling feet]
Alarms (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power failure
V-B-R
High temperature
V-B-R
Low temperature
V-B-R
Electrical and noise level
Power supply
V
220/230/240
Frequency
Hz
50/60
Noise level3)
dB [A]
42
Options
Temperature recorders
• Circular type
MTR-G85C-PE
- Chart paper: RP-G85-PW
- Ink pen: PG-R-PW
- Recorder housing: MPR-S7-PW
• Continuous strip type
MTR-4015LH-PE
- Chart paper: RP-40-PW
- Recorder housing: MPR-S30-PW

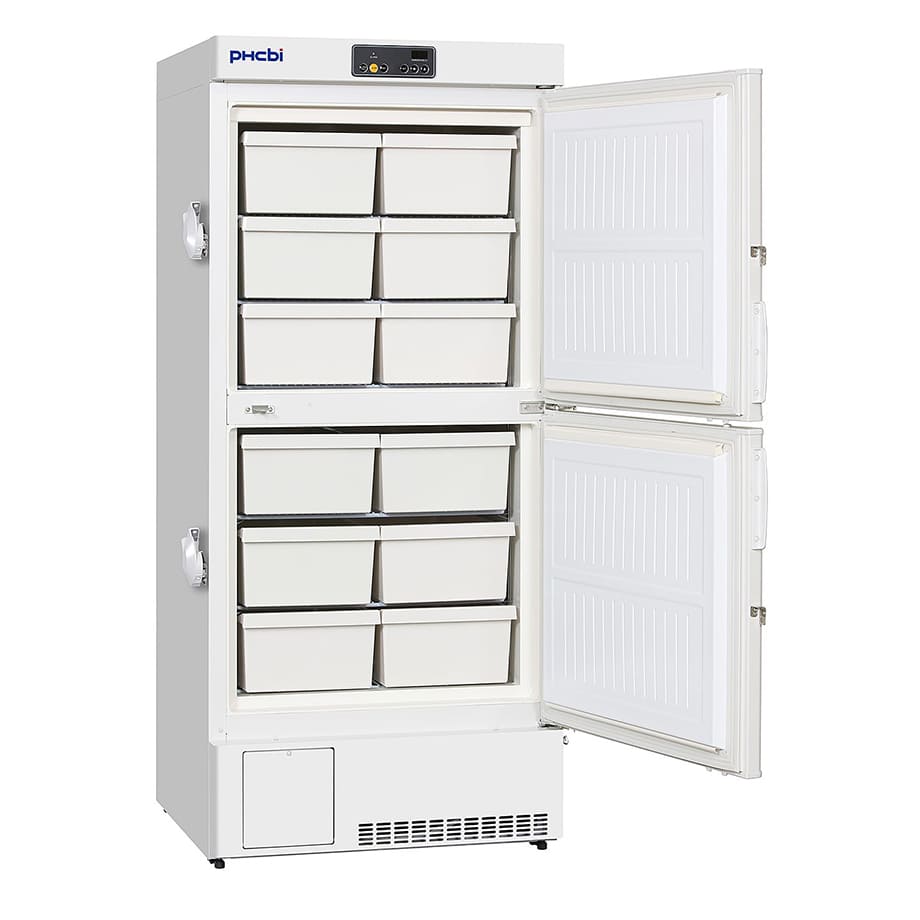

Storage container
MDF-05SC-PW
(2 pcs/set, 6 sets/freezer)
(Inner dimension)
mm
W280 x D552 x H157
