Liquid Nitrogen Tanks

Products Liquid Nitrogen Tanks

Teklif Al

Products

IC Biomedical LD ​​Series Liquid Nitrogen Storage Tanks

IC Biomedical LD ​​Series Liquid Nitrogen Storage Tanks

IC Biomedical LD ​​Series Liquid Nitrogen Storage Tanks

For safe storage and distribution of small amounts of liquid nitrogen Robust ribbed high strength aluminum body, magnetic neck tube design and more durable paint Advanced insulation materials ensure high thermal efficiency

Examine

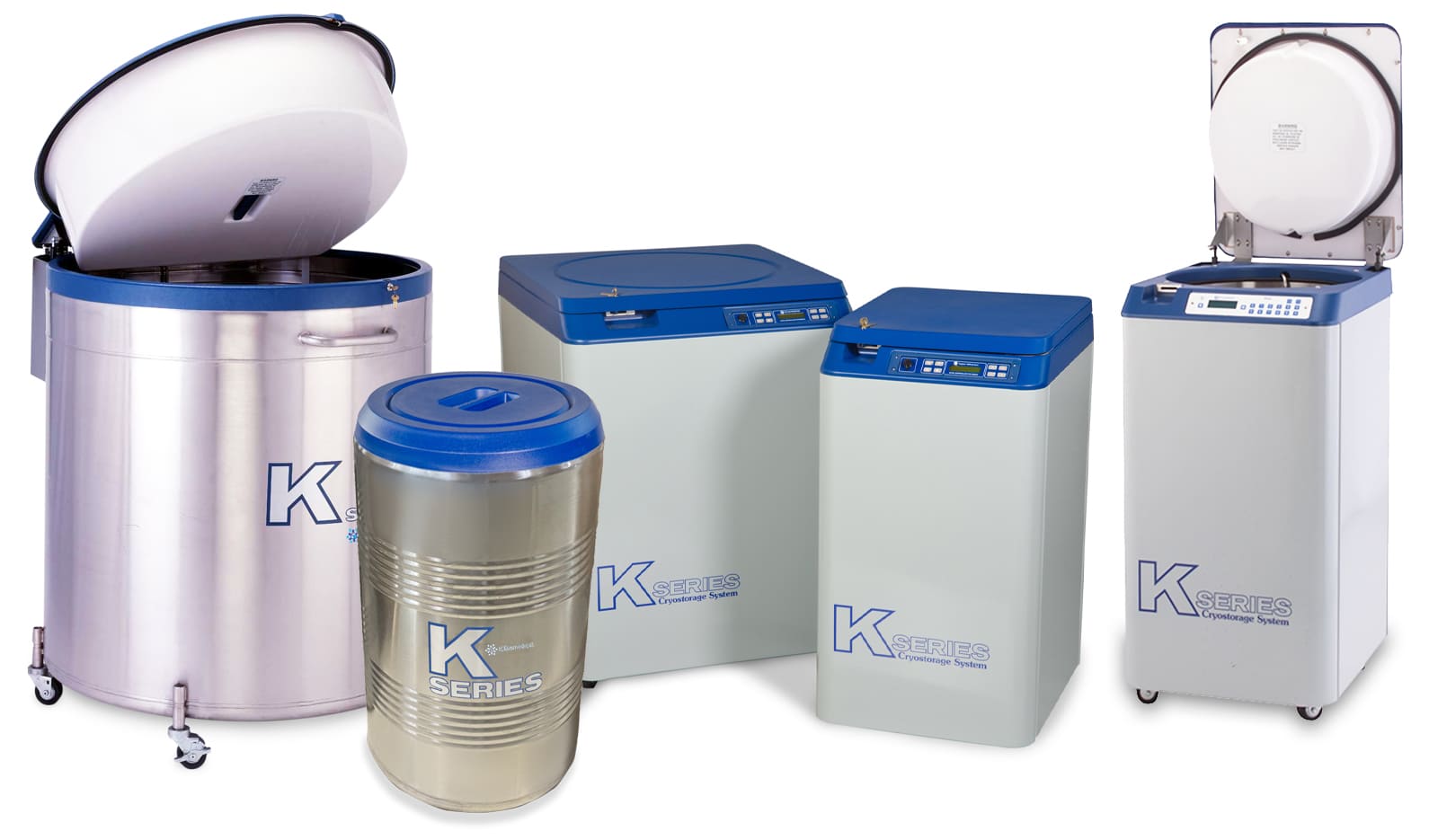

IC Biomedical K Series High-Capacity Sample Storage Tank

IC Biomedical K Series High-Capacity Sample Storage Tank

IC Biomedical K Series High-Capacity Sample Storage Tank

• Provides efficient and reliable sample storage • Automatic level control and automatic filling (except 3K) • Lid sensor (except 3K) • Liquid or vapor-phase storage capability • 4 models with liquid LN2 capacity from 48 L to 590 L • 4 models with storage capacity from 3,000 to 38,350 samples • Stainless steel inner construction • Powder-coated outer cabinet • Vacuum and super-insulated jacket system • Factory-installed temperature probe set at the upper section (except 3K) • Lockable lid (except 3K) • Lockable caster system for easy movement (except 3K) • Rack system and cryo boxes for 10x10 and 5x5 cryo boxes • Rack and cassette system configurable for blood bags

Examine

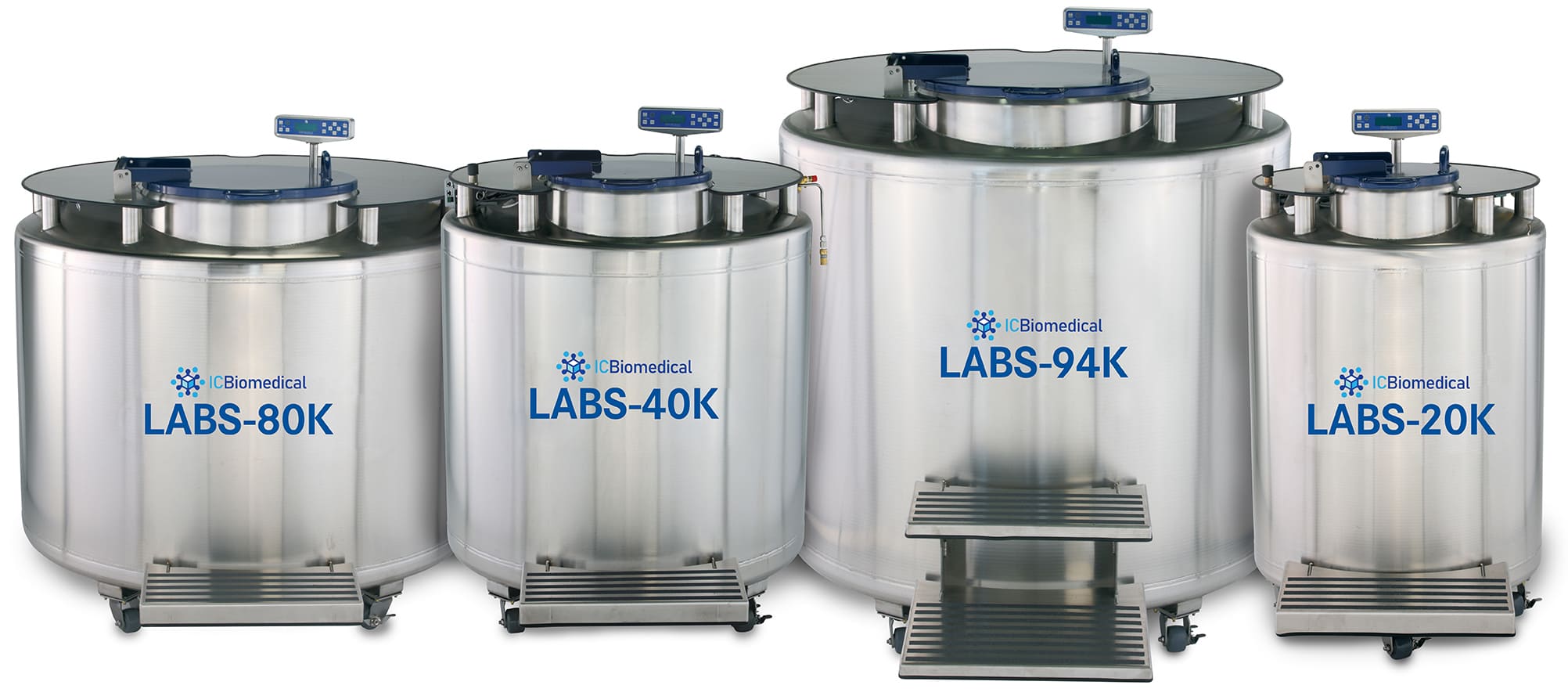

IC Biomedical LABS Series Biobank Sample Storage Tank

IC Biomedical LABS Series Biobank Sample Storage Tank

IC Biomedical LABS Series Biobank Sample Storage Tank

• Sample storage in liquid or vapor-phase LN2 • Ability to store samples in vapor phase at temperatures close to LN2 • MDD certified (93/42/EEC Directive) • 5 models with liquid LN2 capacity from 370 L to 1595 L • 5 models with LN2 reservoir capacity for vapor phase from 36 L to 300 L • LN2 level display in “cm” or as low/normal/high • 5 models with storage capacity from 19,500 to 93,000 samples • Fully stainless-steel inner and outer construction • Aluminum inner rotating platform • Vacuum between inner and outer shells plus super-insulation jacket • High performance and low LN2 consumption • Hinged, sensor-equipped door • Live temperature monitoring with two probes, 0.1°C accuracy • Access port for external temperature measurement and recording • Hot-air bypass line to prevent temperature rise inside the tank • Two solenoid valves to prevent valve-freezing risk during liquid LN2 filling • Low/high LN2 level, low/high temperature, fill-time, power-failure, and door-open alarms • Flat stainless-steel platform for handling samples before placing them into the tank • Standard rack and cassette system • Optional custom-designed rack and cassette system • Warranty: 5 years on vacuum, 2 years against manufacturing defects

Examine
IC Biomedical HC Series High-Capacity Canister Sample Storage Tank

IC Biomedical HC Series High-Capacity Canister Sample Storage Tank

IC Biomedical HC Series High-Capacity Canister Sample Storage Tank

• The High-Capacity (HC) cryogenic storage unit provides large-volume storage. Direct contact with liquid enables sample storage at −196°C. • Seven different models offer various options balancing sample storage capacity and holding time, while providing easy access to stored materials thanks to larger neck openings. • A low-profile (12HCL) model is available for applications that require a shorter-profile unit. • High-strength aluminum body, Magne-shaped neck tube design, and durable paint finish • Numbered index ring and tapered internal canister locator • Superior vacuum performance with super insulation ensures maximum holding time. • Lockable lid.

Examine

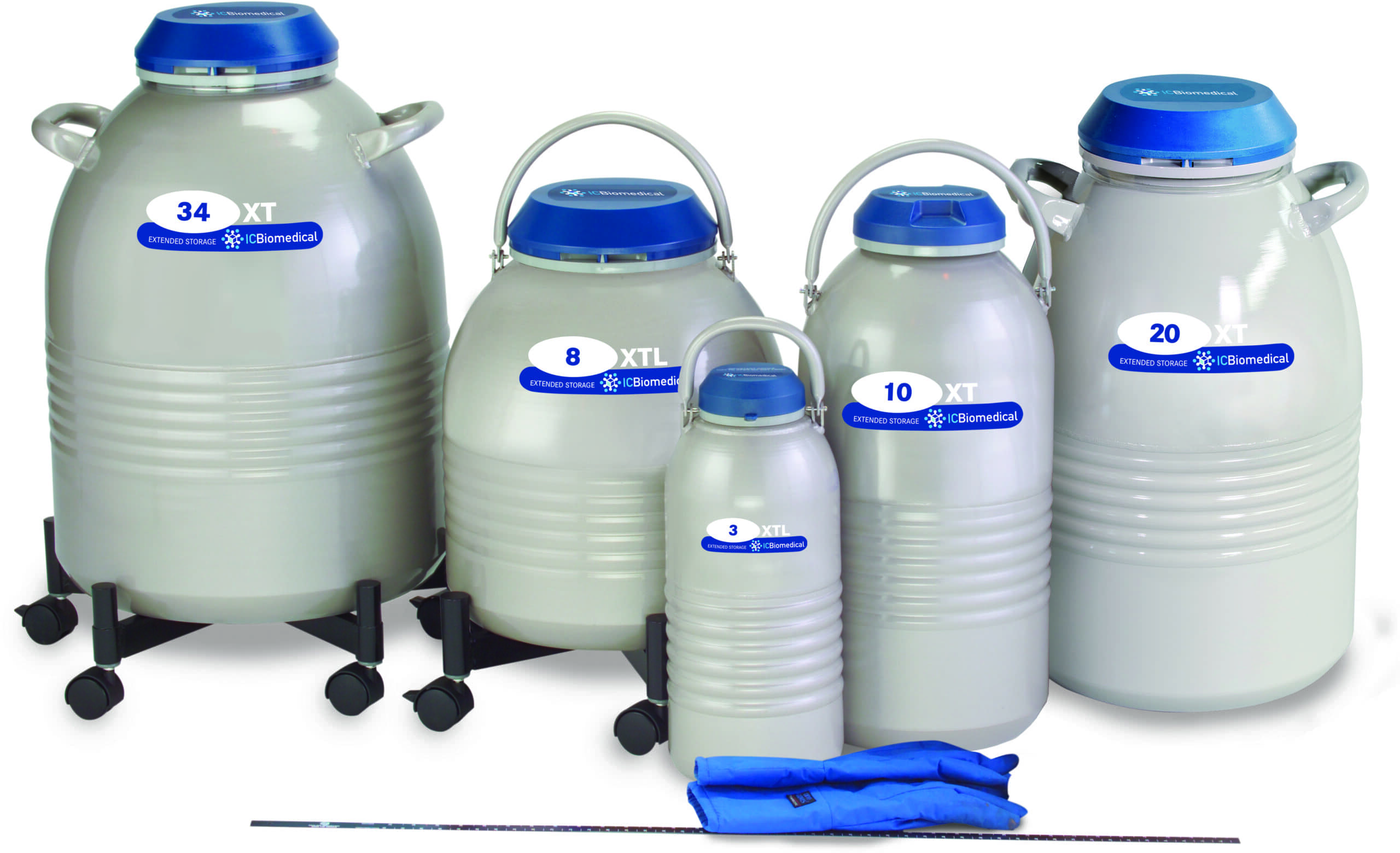

IC Biomedical XT Series Canister Sample Storage and Transport Tank

IC Biomedical XT Series Canister Sample Storage and Transport Tank

IC Biomedical XT Series Canister Sample Storage and Transport Tank

• The Extended Time (XT) Series is designed for extra-long-term storage of biological material at liquid nitrogen temperature. • Five models offer alternatives that balance portability, sample storage capacity, and holding time to suit a variety of storage needs. • High-strength aluminum body, Magne-shaped neck tube design, and durable paint finish. • Convenient numbered index position ring and tapered internal canister locator. • Lockable lid.

Examine
IC Biomedical LS Series Automatic-Fill Sample Storage Tank

IC Biomedical LS Series Automatic-Fill Sample Storage Tank

IC Biomedical LS Series Automatic-Fill Sample Storage Tank

• The Laboratory System (LS) Series cryogenic refrigerators are uniquely designed to store 2 ml vials in racks using a suitable box format. • The LS series offers maximum holding times, which means a lower operating cost per vial. • Thanks to the aluminum inner vessel, it provides extremely stable low-temperature profiles and offers storage capacities from 750 to 6000 standard 2 ml vials. • LS4800 and LS6000 units can be used with an automatic fill control unit. Advanced automatic level control provides standard alarms (low level, empty nitrogen source, high temperature, etc.), stores events in memory, and can be connected to a printer or computer (optional). • High-strength aluminum body, Magne-shaped neck tube design, and durable paint system • Shelf index position ring and internal positioning fixture are ideal for computer-tracked box storage and simple inventory management • Superior vacuum performance • Lockable lids

Examine

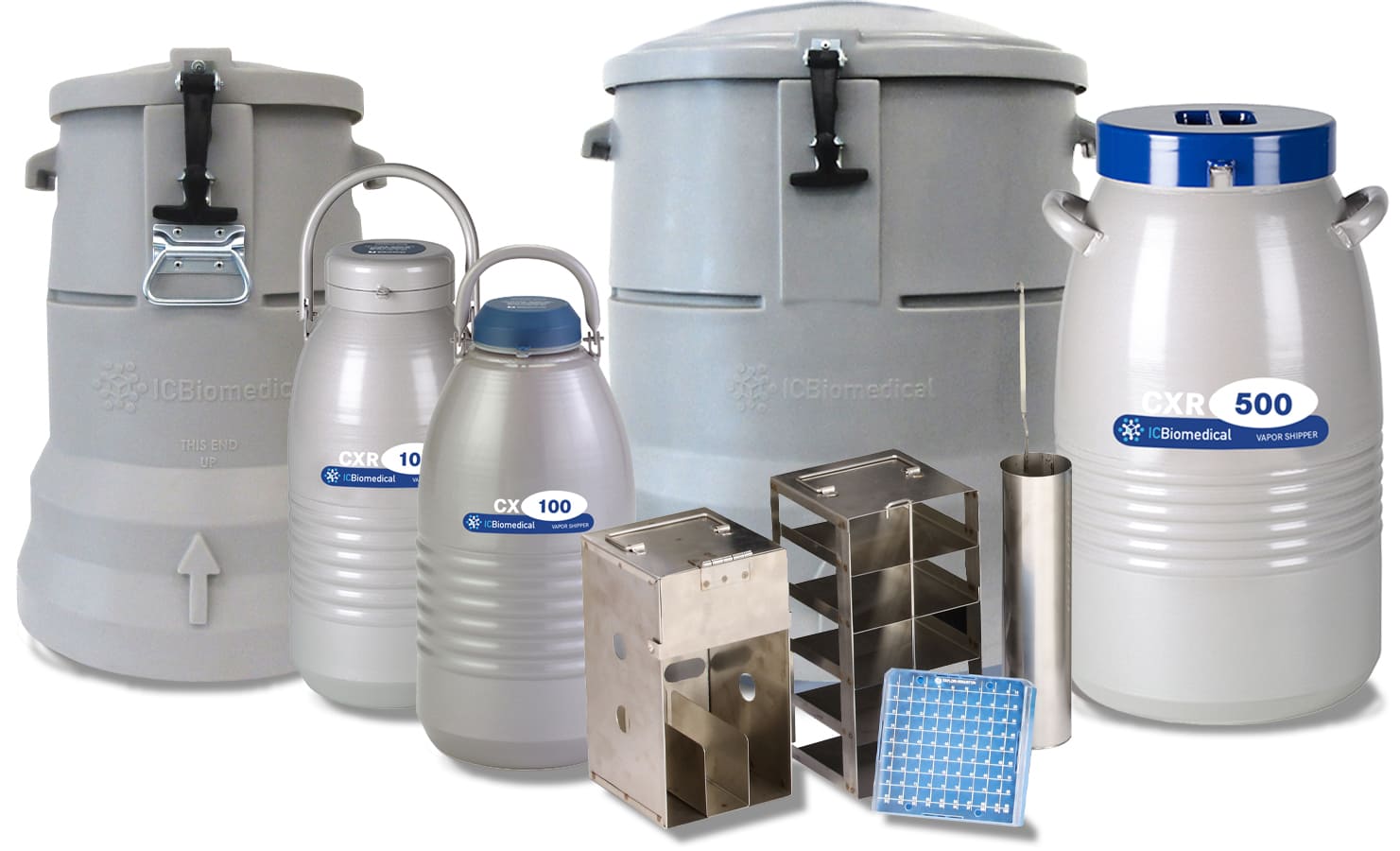

IC Biomedical CX Series Vapor-Phase Transport System (Dry Shipper)

IC Biomedical CX Series Vapor-Phase Transport System (Dry Shipper)

IC Biomedical CX Series Vapor-Phase Transport System (Dry Shipper)

• The Dry Shipper (liquid nitrogen vapor phase) enables transport of biological samples at approximately −190°C. • High-capacity absorbent pads prevent liquid nitrogen spillage even if the unit tips over during transport. • CXR100 and CXR500 provide a quick solution in case of biological contamination, thanks to replaceable absorbent pads that can be swapped out. • CXR500 features a dedicated rack system for transporting blood bags and cryo boxes. • Compliant with the IATA Dangerous Goods Regulations for open cryogenic receptacles (PI202 – Packing Instruction 202). • Reliable, robust neck design and high-strength aluminum body. • Superior vacuum performance with super insulation ensures maximum holding time. • Temperature data loggers are available for all models (optional). • Lid system can be fitted with a padlock for sample security during transport. • Optional plastic or aluminum protective case system designed to protect the Dry Shipper.

Examine
IC Biomedical AI-91K Series High-Capacity Semen Tank

IC Biomedical AI-91K Series High-Capacity Semen Tank

IC Biomedical AI-91K Series High-Capacity Semen Tank

High efficiency – very low LN2 consumption • Storage capacity of 93,000 0.5 cc straws (10 straws per cane) • LN2 storage can be in liquid or vapor phase • Single-pivot-point aluminum rotating turret design – smooth rotation and ergonomic use • Eliminates maintenance of any mechanical components • Full-height, compartmentalized, and labeled rotating turret enables easy inventory access, storage, and management • Easy access for measuring LN2 level

Examine
IC Biomedical AI Shield Series Semen Tank

IC Biomedical AI Shield Series Semen Tank

IC Biomedical AI Shield Series Semen Tank

Reduce artificial insemination failures. Protect your investment. AI Shield™ offers a new solution to protect frozen bull semen from the adverse temperature fluctuations that commonly occur when removing it from traditional cryogenic canisters. Innovative thermal protection guards against temperature changes, delivering: • Increased sample viability • Higher pregnancy rates • Improved productivity

Examine

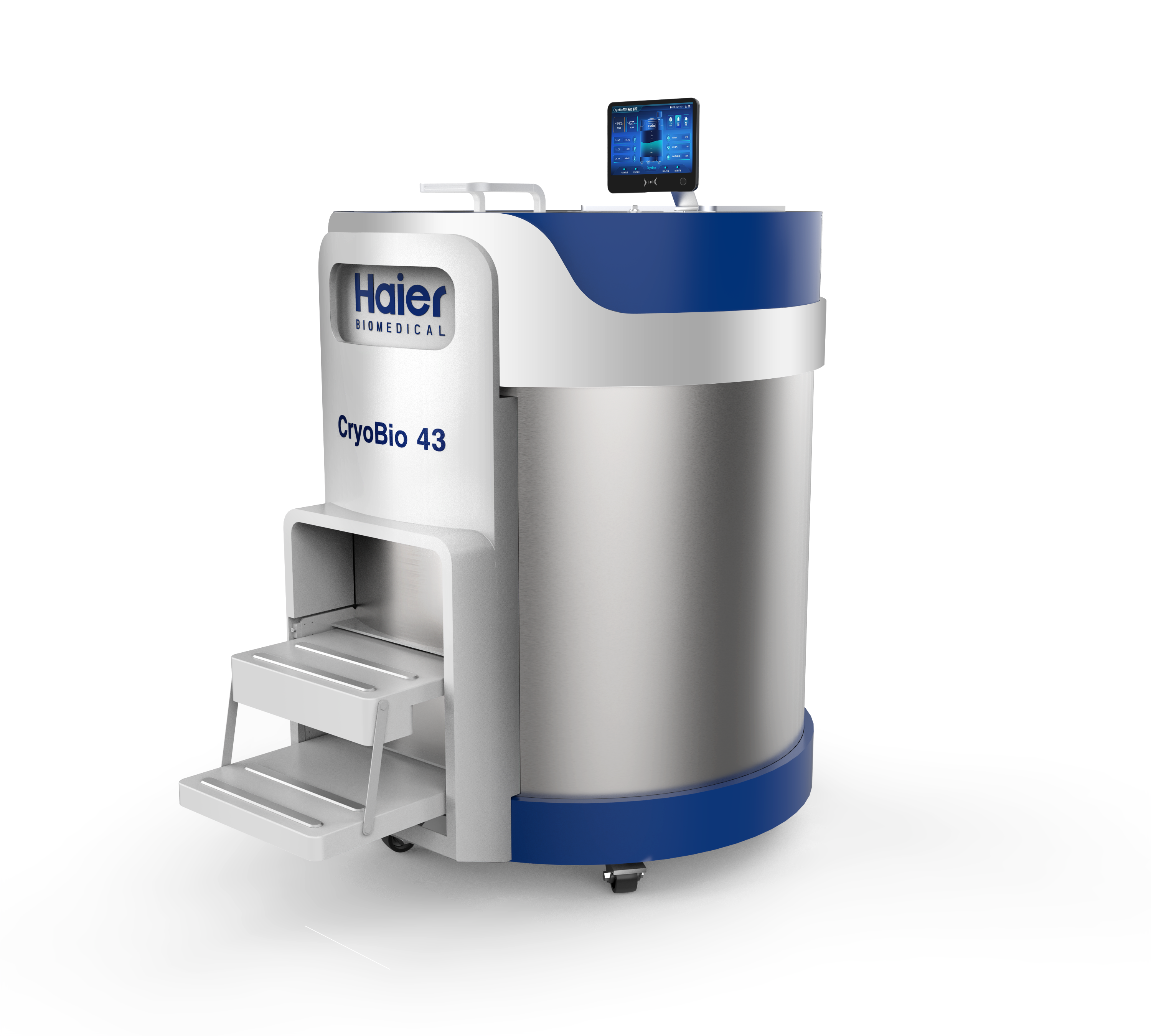

Haier CryoBio Series High-Capacity Sample Storage Tank

Haier CryoBio Series High-Capacity Sample Storage Tank

Haier CryoBio Series High-Capacity Sample Storage Tank

It is suitable for use in scientific research institutes, as well as in electronics, chemical, pharmaceutical, and other related industrial enterprises; laboratories; blood collection centers; hospitals; disease control and prevention centers; and medical institutions. These tanks are ideal for storing and keeping samples active, such as blood bags, biological samples, biological materials, vaccines, and reagents.

Examine

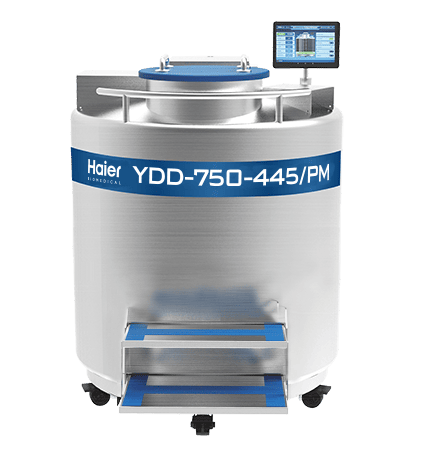

Haier YDD Series Biobank Sample Storage Tank

Haier YDD Series Biobank Sample Storage Tank

Haier YDD Series Biobank Sample Storage Tank

Designed for large-scale storage, the Biobank series aims to provide maximum storage capacity with minimal liquid nitrogen consumption in order to reduce overall operating costs.

Examine

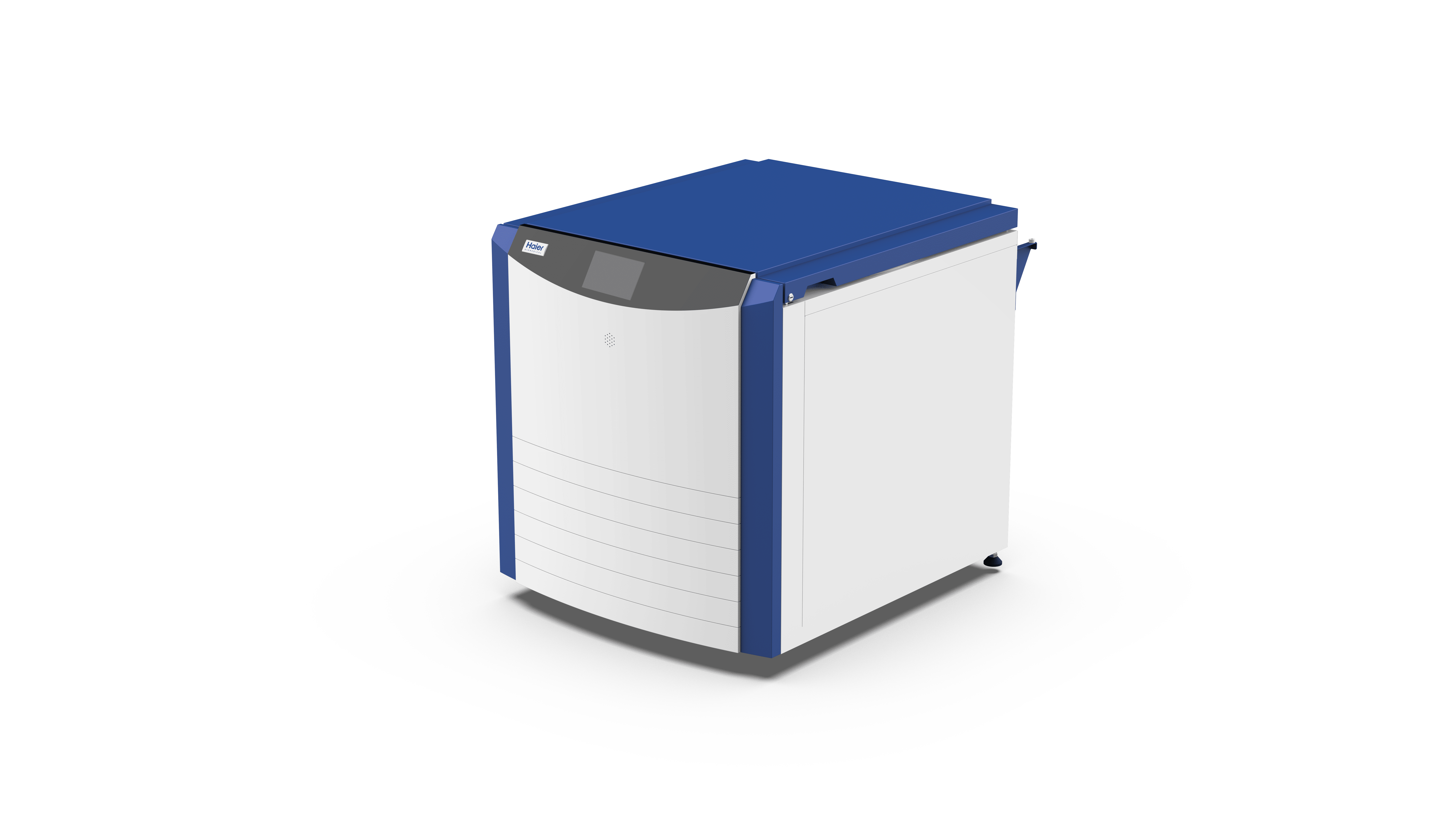

Haier CryoBio Z Series Sample Storage Tank

Haier CryoBio Z Series Sample Storage Tank

Haier CryoBio Z Series Sample Storage Tank

Suitable for cryogenic storage of plasma, cell tissues, and various biological samples in hospitals, laboratories, scientific research institutions, disease control and prevention centers, various biobanks, and other industry-related applications.

Examine

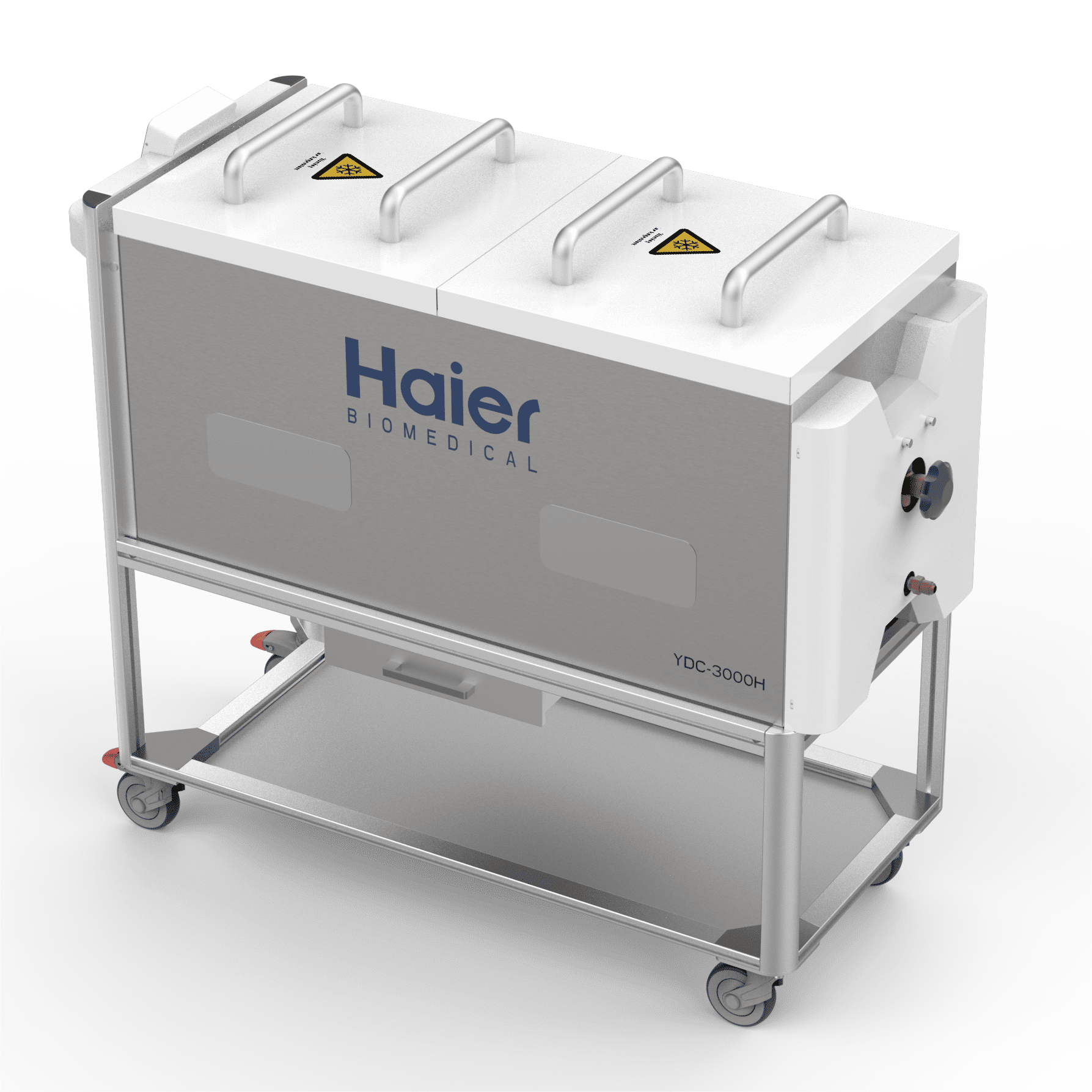

Haier Liquid Nitrogen Container – Low-Temperature Transport Trolley YDC-3000H

Haier Liquid Nitrogen Container – Low-Temperature Transport Trolley YDC-3000H

Haier Liquid Nitrogen Container – Low-Temperature Transport Trolley YDC-3000H

This unit can be used to preserve plasma and biomaterials during transport. It is suitable for deep-freezing (hypothermic) processing and transportation of samples in hospitals, various biobanks, and laboratories. Its high-quality stainless-steel structure combined with an insulation layer ensures the effectiveness and durability of the low-temperature transport trolley.

Examine

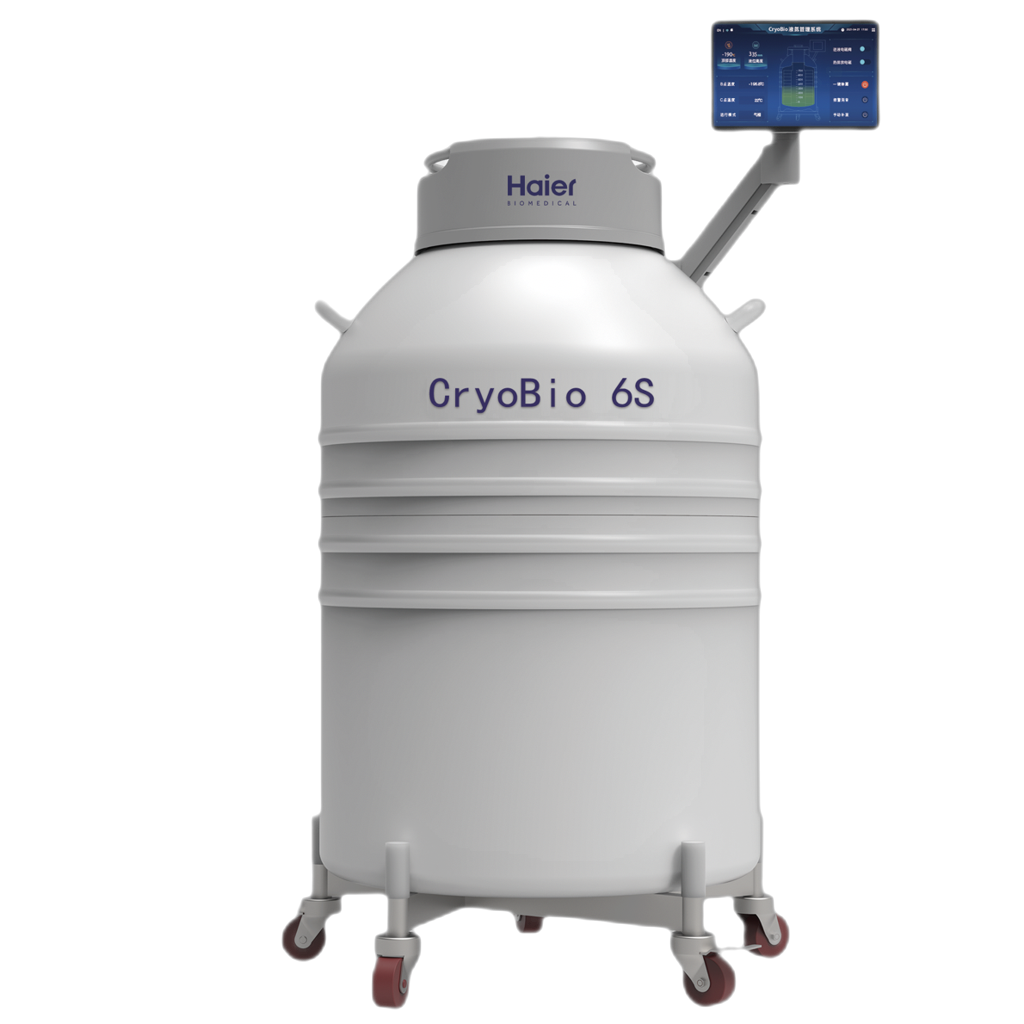

Haier CryoBio 6S Sample Storage Tank

Haier CryoBio 6S Sample Storage Tank

Haier CryoBio 6S Sample Storage Tank

New-generation liquid nitrogen biological container – CryoBio 6S with automatic filling function. Suitable for the mid-to-high-end biological sample storage needs of laboratories, hospitals, sample banks, and the livestock industry.

Examine
Haier Bio-2T Portable Cryogenic Transfer Tank

Haier Bio-2T Portable Cryogenic Transfer Tank

Haier Bio-2T Portable Cryogenic Transfer Tank

Portable Cryogenic Transfer Tank Suitable for small-scale, short-distance sample transfers in laboratory units or hospitals.

Examine

Description

Liquid Nitrogen Tanks

Liquid nitrogen tanks are specially designed containers used to safely store liquid nitrogen at extremely low temperatures. Liquid nitrogen has a boiling point of -196 °C (-321 °F), making it an extremely cold substance. For this reason, tanks used for storing liquid nitrogen must be resistant to such low temperatures and provide a high level of thermal insulation.


Types of Liquid Nitrogen Tanks

Liquid nitrogen tanks are mainly divided into two primary groups based on their intended use and capacity.


Dewar Tanks

Dewar tanks consist of two nested metal containers. The inner vessel holds the liquid nitrogen, while the outer vessel is vacuum insulated. This design minimizes heat transfer. Dewar tanks are generally preferred for storing and transporting small volumes of liquid nitrogen.


Pressurized Tanks

Pressurized tanks are used to store larger volumes of liquid nitrogen. They feature an insulation system similar to Dewar tanks; however, they are equipped with additional components to control internal pressure.


Applications of Liquid Nitrogen Tanks

Liquid nitrogen tanks are widely used in many different fields that require extremely low temperatures.


Biology and Medicine

Examples include long-term storage of cells, tissues, and organs (cryopreservation), storage of blood and blood products, preservation of vaccines and biological samples, and cryotherapy applications used in cancer treatment.


Industry

Liquid nitrogen tanks are used in metal processing for cooling and hardening, manufacturing of electronic components, cooling of superconductors, and food freezing applications.


Research

Liquid nitrogen tanks play an important role in advanced applications such as low-temperature physics experiments, materials science studies, and cooling of rocket fuels in space research.


Other Areas of Use

Liquid nitrogen tanks are also utilized in various fields such as storage of sperm and embryos in the livestock sector, as well as the creation of special effects in art and stage productions.
