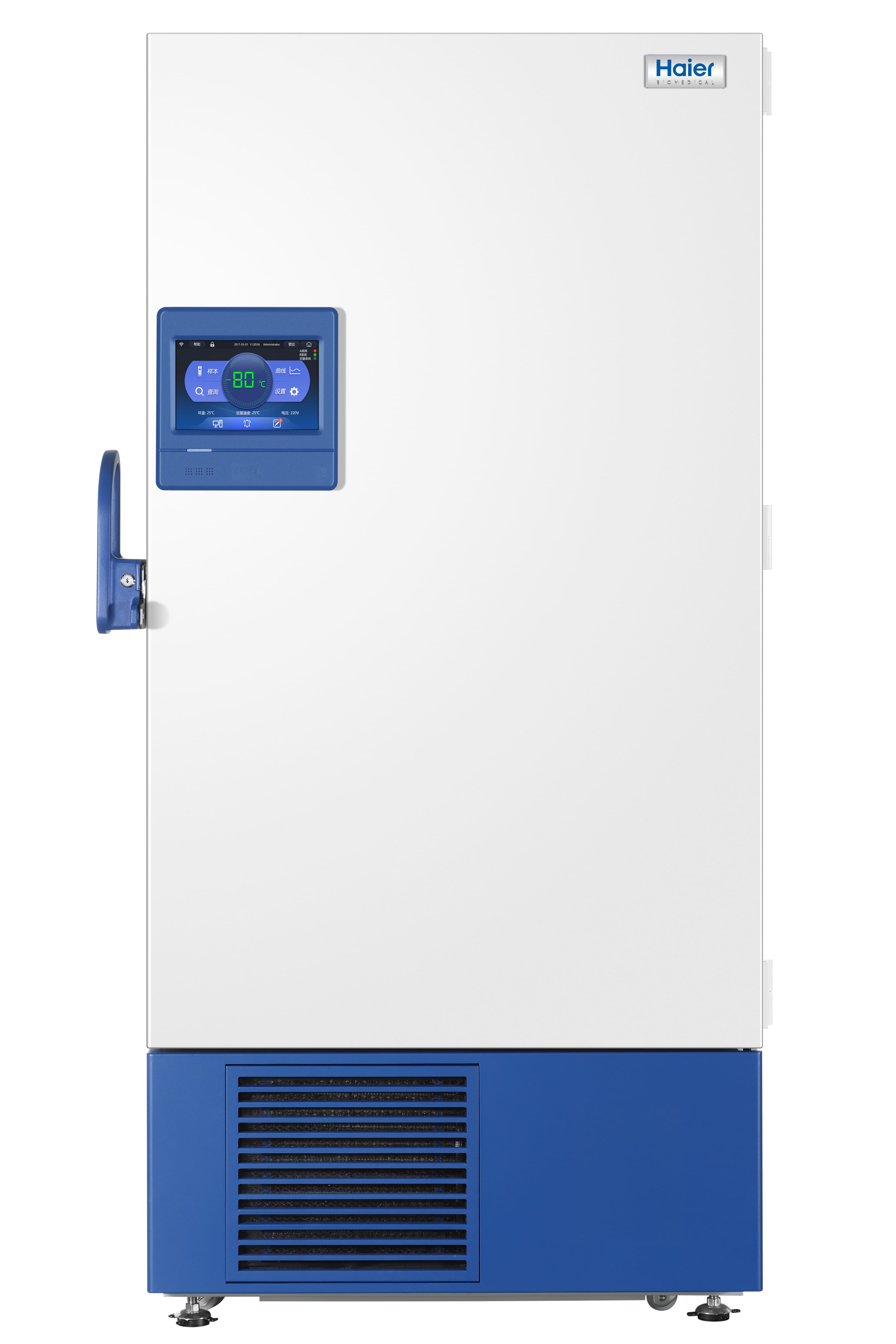

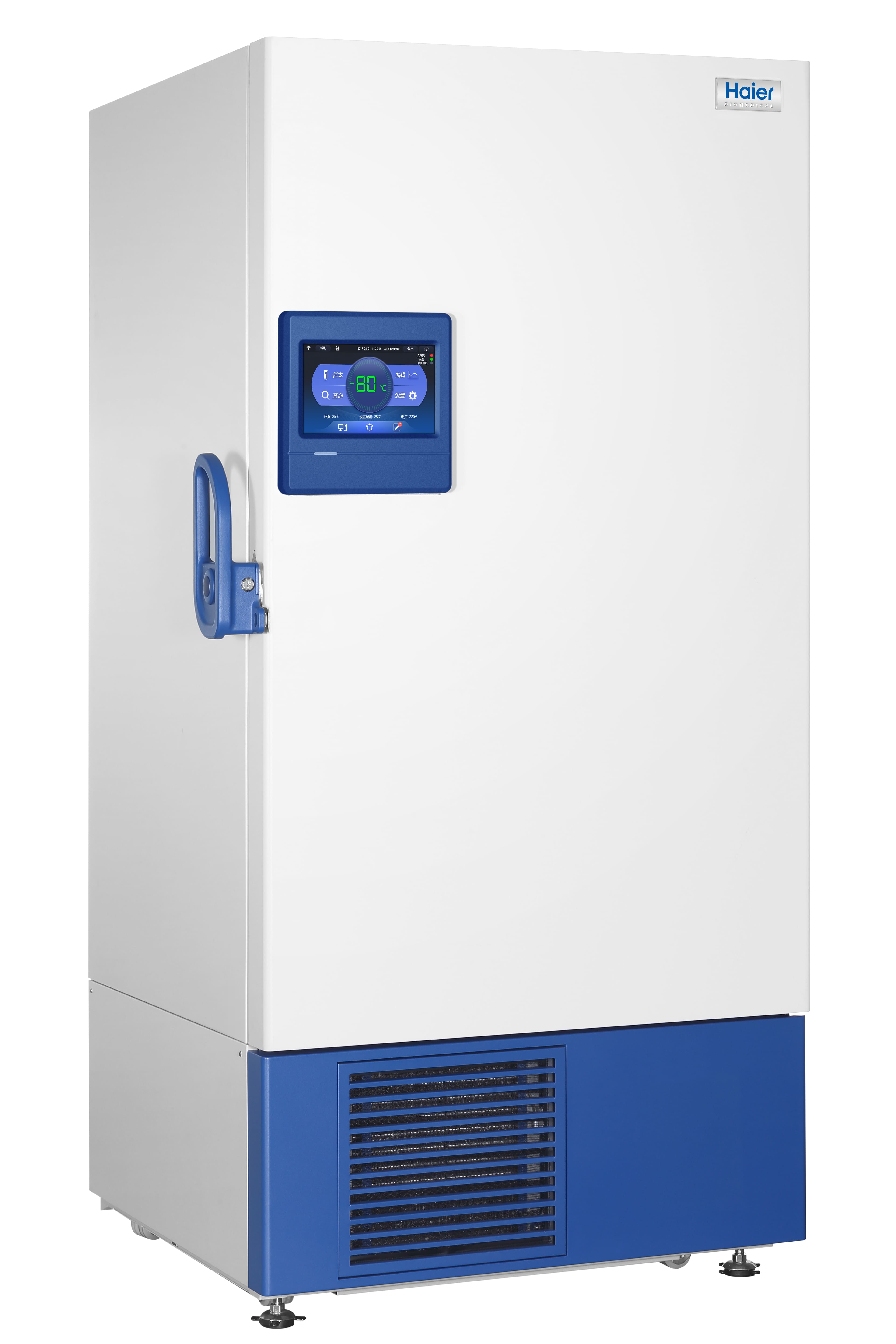

Energy Saving Series / Haier 400 liters
Haier Biomedical Salvum brand ULT freezers are designed to save energy and reduce carbon footprint. This series uses environmentally friendly hydrocarbon refrigerants and high-efficiency fan motors to maximize the cooling ability of the system and reduce energy consumption. While ensuring sample safety, the freezer design enables energy saving for laboratories. 10-inch high-performance LCD capacitive screen, sensitive touch operation; intuitive display of internal temperature, ambient temperature, input voltage and other data, and temperature curves.
Teknik Özellikler
| Model | DW-86L419 | |
|---|---|---|
| Technical Data | ||
| Cabinet Type | Upright | |
| Climate Class | N | |
| Cooling Type | Direct Cooling | |
| Defrost Mode | Manual | |
| Refrigerant | HC | |
| Noise Level (dB (A)) | 47 | |
| Performance | ||
| Cooling Performance (°C) | -86 | |
| Temperature Range (°C) | -40~-86 | |
| Control | ||
| Controller | Microprocessor | |
| Display | LCD Touchscreen | |
| Electrical Data | ||
| Power Supply (V/Hz) | 220~240/50 | |
| Power (W) | 800 | |
| Electric Current (A) | 5 | |
| Dimensions | ||
| Capacity (L/Cu.Ft) | 419/14.8 | |
| Net/Gross Weight (approx.) | kg | 255/286 |
| Net/Gross Weight (approx.) | lbs | 562.2/630.5 |
| Internal Dimensions (W*D*H) | mm | 465*716*1310 |
| Internal Dimensions (W*D*H) | in | 18.3*28.2*51.6 |
| External Dimensions (W*D*H) | mm | 830*980*1980 |
| External Dimensions (W*D*H) | in | 32.7*38.6*78.0 |
| Packaging Dimensions (W*D*H) | mm | 890*1090*2130 |
| Packaging Dimensions (W*D*H) | in | 35.0*42.9*83.9 |
| Container loading (20'/40'/40'H) | 12/26/26 | |
| Functions | ||
| High/Low Temperature | Available | |
| Hot Condenser | Available | |
| Power Failure | Available | |
| High/Low Voltage | Available | |
| Sensor Error | Available | |
| Low Battery | Available | |
| High Ambient Temperature | Available | |
| Door Open | Available | |
| Start-up Delay | Available | |
| Accessories | ||
| Casters | Available | |
| Leveling Feet | Available | |
| Access port | Available/2 | |

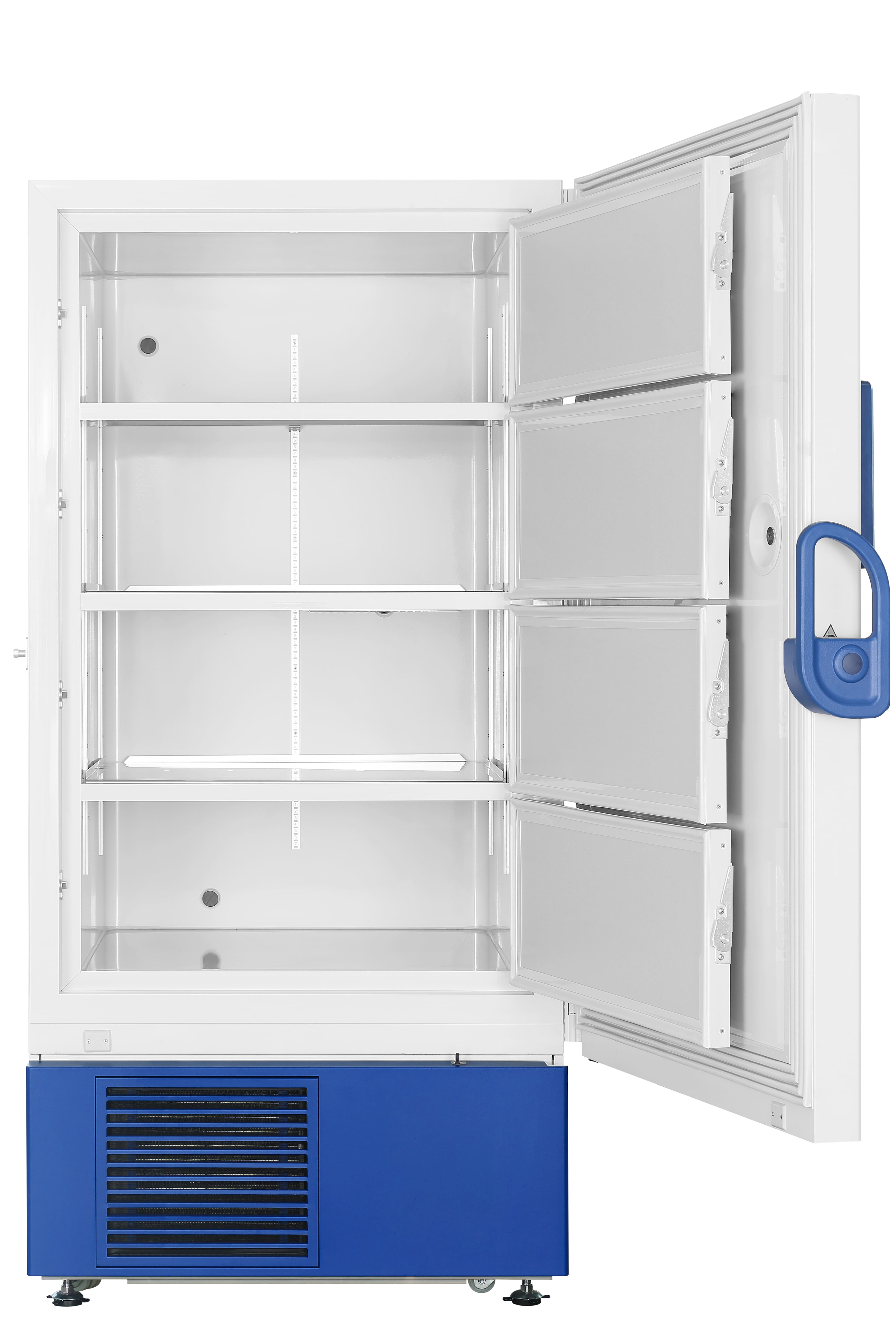

| Shelves/ Inner Doors | 3 / 2 | |
| USB Interface | Available | |
| Remote Alarm | Available | |
| 5V Power Supply Port | Available | |
| Temperature Chart Recorder | Optional | |
| RS485 Port | Available | |
| CO2 Backup System | Optional | |
| LN2 Backup System | Optional | |
| Certification | ||
| CE | Available | |
| Energy Star | Available | |
