Energy Saving Series / PHCBI 500 Liters
Energy Saving Series / PHCBI 500 Liters

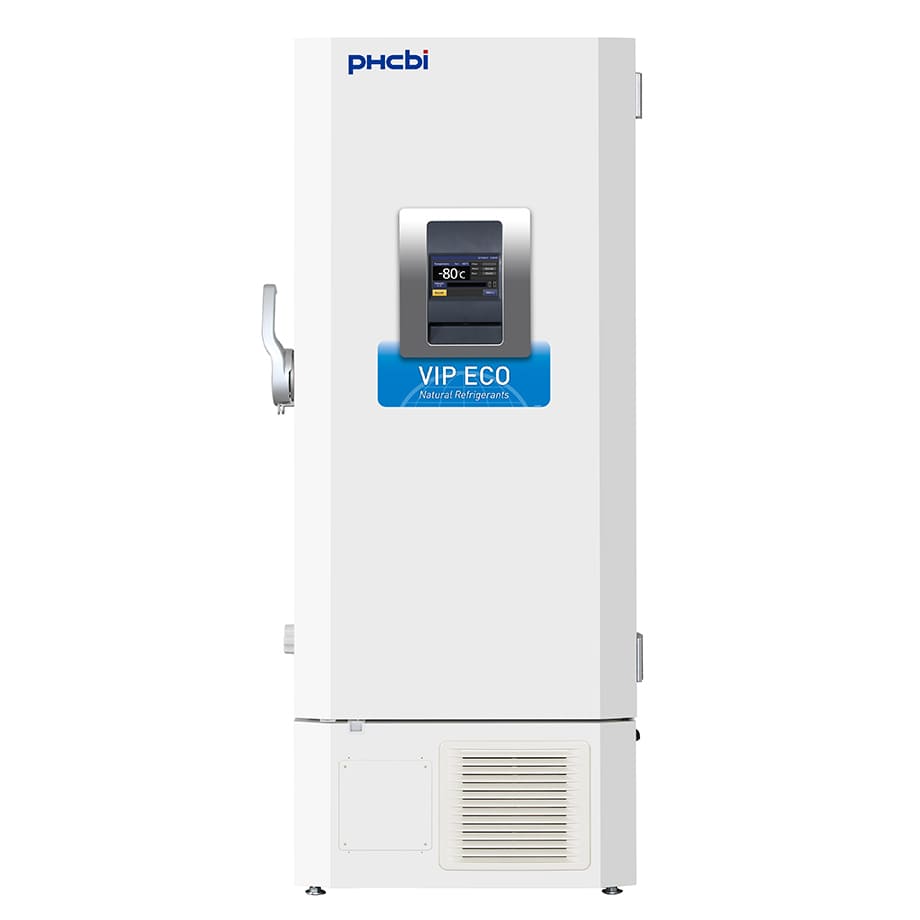

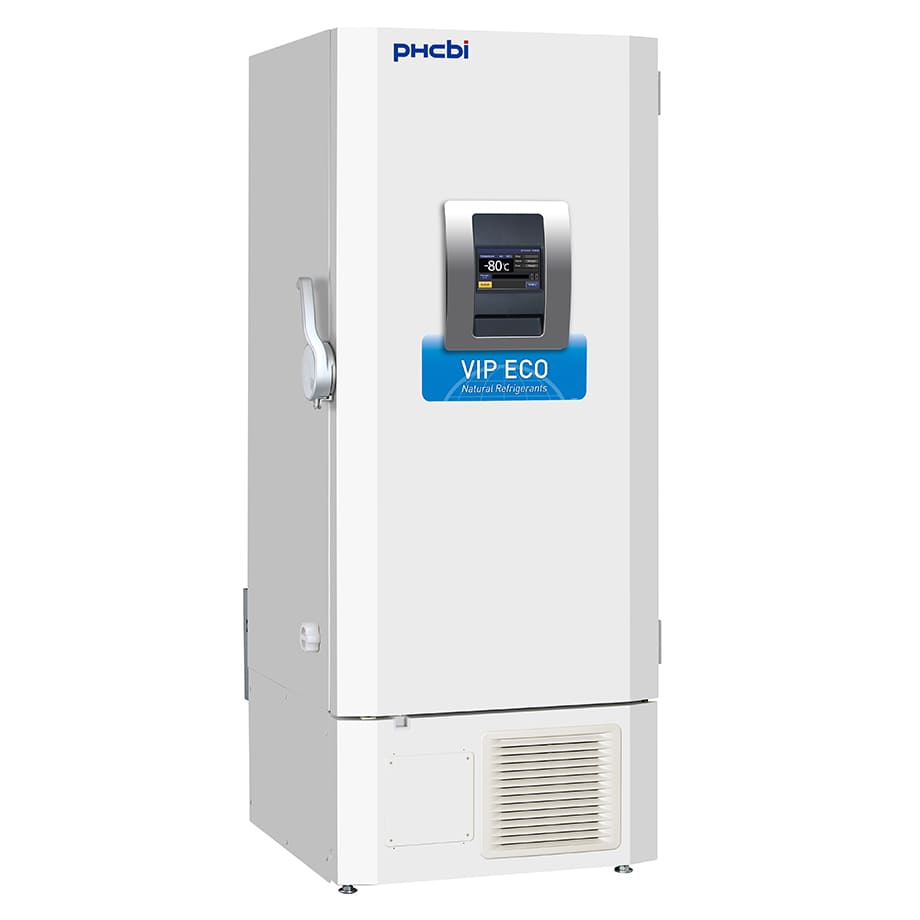

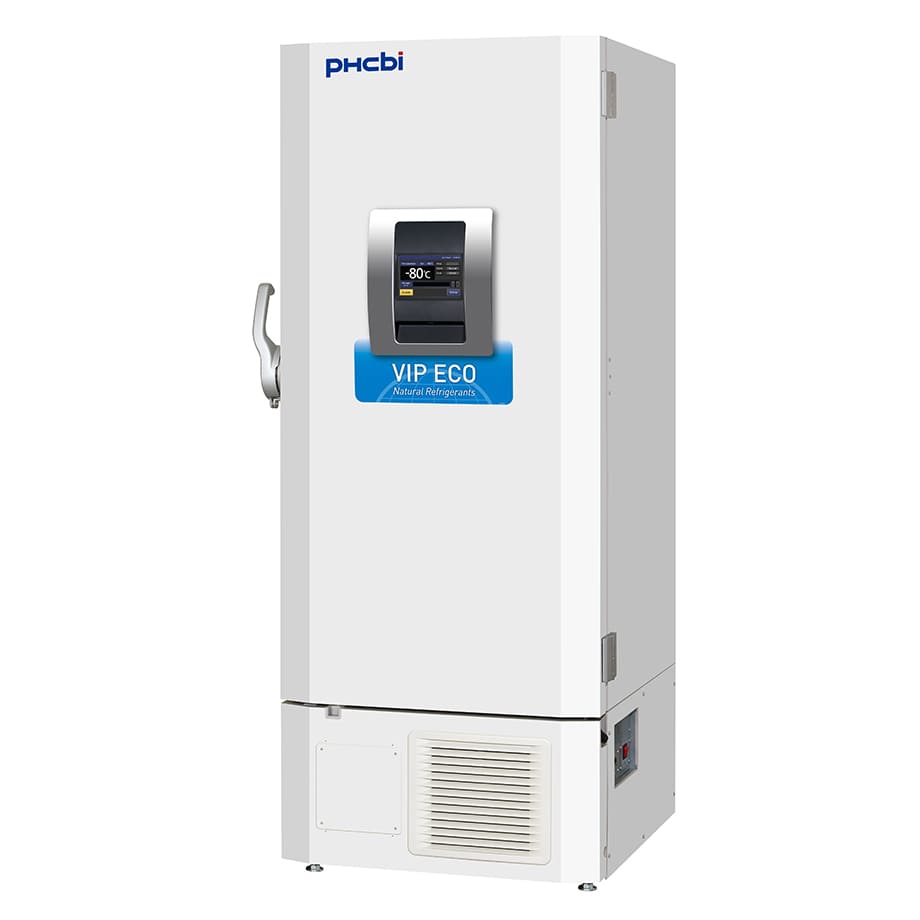

The MDF-DU502VH VIP ECO -86°C ultra-low temperature freezer provides maximum sample storage capacity within an optimum footprint combined with natural refrigerants to minimise energy consumption, reduce environmental impact and save money. Efficient Cooling Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. In addition to improved performance, this leads to lower power consumption and energy costs. Inverter Technology The MDF-DU502VH VIP ECO ULT Freezer features Inverter Compressors that maximise cooling performance under different conditions and contribute to reducing the freezer’s energy consumption.
Teknik Özellikler
| Model | MDF-DU502VH-PE | |
|---|---|---|
| External dimensions (W x D x H) | mm | 790 x 882 x 1993 |
| Internal dimensions (W x D x H) | mm | 630 x 600 x 1400 |
| Volume | liters | 528 |
| Net weight | kg | 246 |
| Capacity | 2” boxes | 384 |
| Performance | ||
| Cooling performance | °C | -86 |
| Temperature setting range | °C | - 40 to -90 |
| Temperature control range | °C | - 40 to -86 |
| Control | ||
| Controller | Microprocessor, non-volatile memory | |

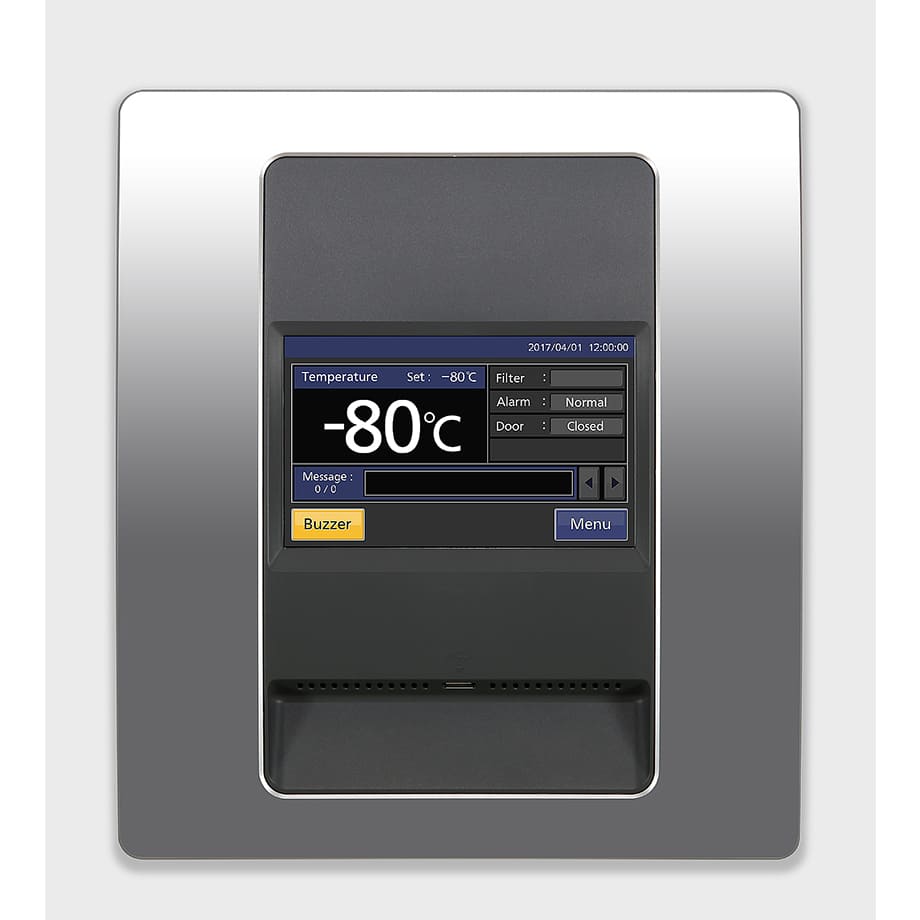

| Display | LCD Touchscreen Display | |
| Temperature sensor | Pt-1000 | |
| Cooling performance | ||
| Cooling system | Cascade | |
| Compressors | W | 2 x 750 |
| Refrigerant | HC | |
| Insulation material | PUF / VIP Plus | |
| Insulation thickness | mm | 80 |
| Construction | ||
| Outer material | Painted Steel | |
| Inner material | Painted Steel | |
| Outer door | pcs | 1 |
| Outer door lock | Available | |
| Inner doors | pcs | 2 |
| Shelves | pcs | 3 |
| Maximum load - per shelf | kg | 50 |
| Maximum load - total 3) | kg | 415 |
| Vacuum relief port | 2 (1 automatic, 1 manual) | |
| Access port | pcs | 3 |
| location | rear x 1, bottom x 2 | |
| diameter | Ø mm | 17 |
| Casters | pcs | 4 (2 leveling feet) |
| Alarms (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm) | ||
| Power failure | V-B-R | |
| High temperature | V-B-R | |
| Low temperature | V-B-R | |
| Filter | V | |
| Door open | V-B | |
| Electrical and Noise Level | ||
| Power supply | V | 230 |
| Power consumption | kWh/24h | 6,7 |
| Frequency | Hz | 50 |
| Noise level | dB [A] | < 52 |
| Options | ||
| Small inner door kit | Set of 5 | MDF-5ID5-PW |
| Small inner door kit | Set of 4 | MDF-5ID4-PW |
| Liquid CO2 backup | MDF-UB7-PW | |
| Temperature recorders | ||
| Circular type | MTR-G85C-PE | |
| Chart paper | RP-G85-PW | |
| Ballpoint pen | PG-R-PW | |
| Continuous chart type | MTR-85H-PW | |
| Chart paper | RP-85-PW | |
| Ballpoint pen | DF-38FP-PW | |
| Recorder cover | MDF-S3085-PW | |
