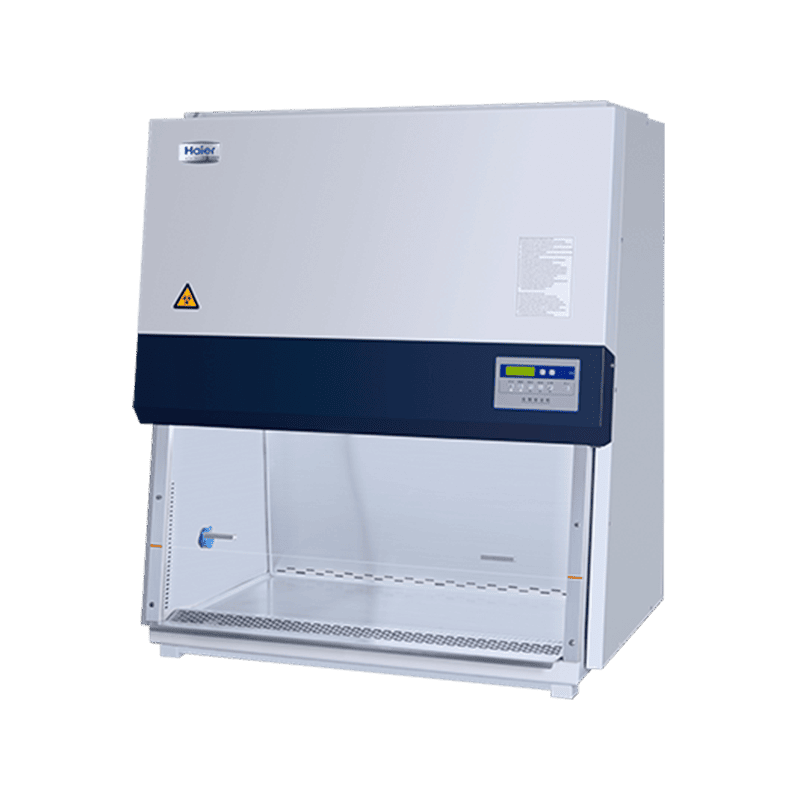

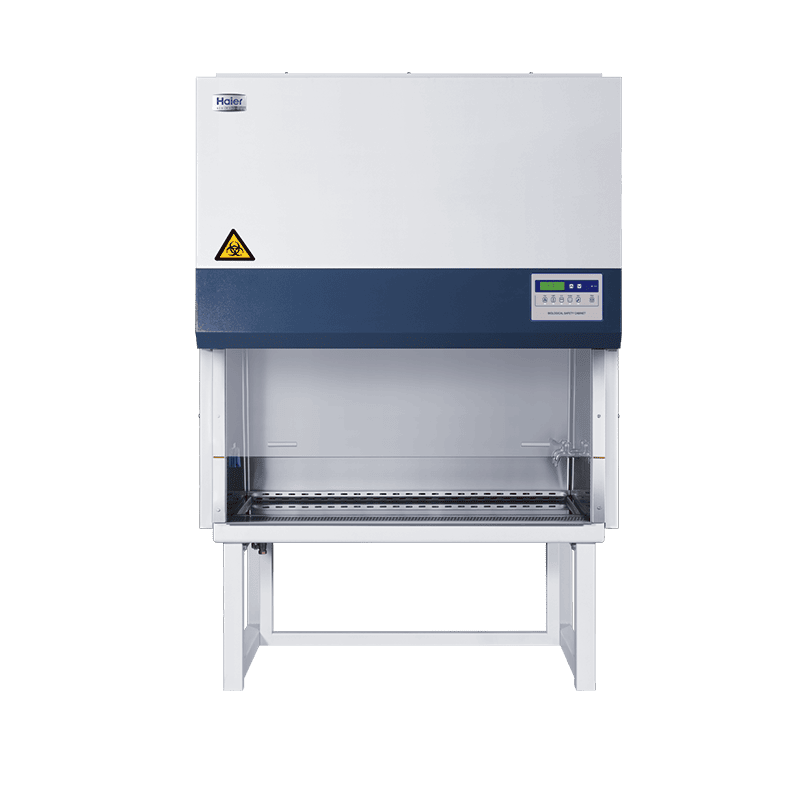

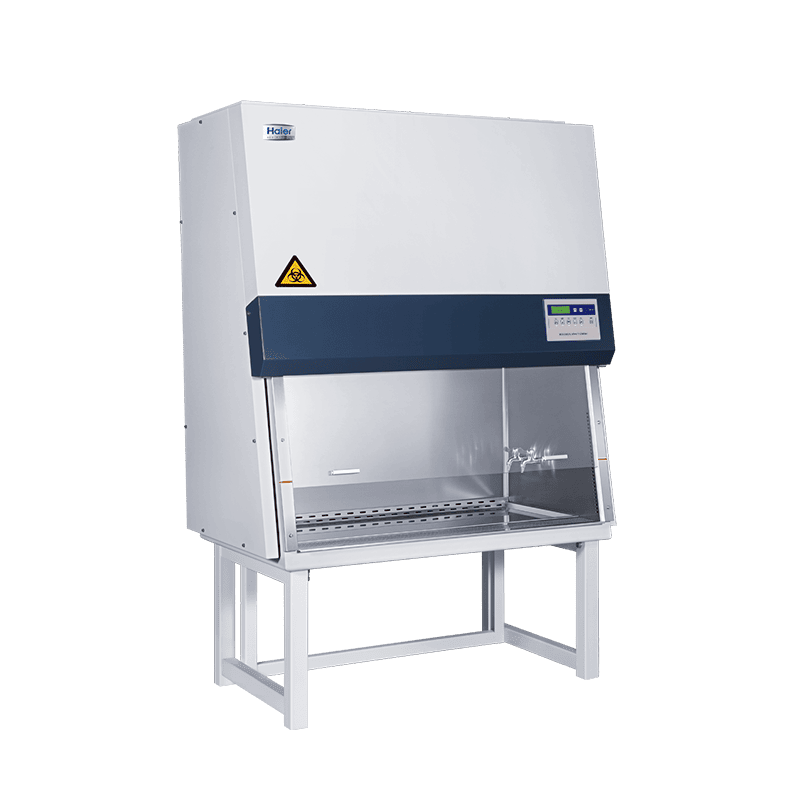

Haier Class II A2 Classic Series Biosafety Cabinets
Haier Class II A2 Classic Series Biosafety Cabinets
Haier Biomedical Biological Safety Cabinet is designed to protect the operator, laboratory environment and samples from exposure to infectious aerosol generated from samples containing bacterial strains, diagnostic materials and other infectious substances. It provides the operator with comfortable and safer working conditions. It is widely used in medical health, disease prevention, food safety, biological pharmacy and environmental monitoring. Ultra-efficient air filter (ULPA) 99.9995% superior filtration effect for 0.12 μm particles Spiral forward centrifugal fan Sound and light alarm function UV lamp sterilization timed start Ergonomic 10-degree tilt design With CE and TÜV SÜD Marking Certificate
Teknik Özellikler
| Model | HR30-IIA2 | HR40-IIA2 | |
|---|---|---|---|
| General Specifications | |||
| Power Supply (V/Hz) | 220-240/50/60 | 220-240/50/60 | |
| Power (VA) | 1300 | 1300 | |
| Blower Power (W) | AC 540/625 | AC 540/625 | |
| Airflow Circulation | 70% Downflow, 30% Exhaust | 70% Downflow, 30% Exhaust | |
| Main Filter Typical Efficiency | ULPA, U15, 99.9995% @ 0.12um | ULPA, U15, 99.9995% @ 0.12um | |
| Exhaust Filter Typical Efficiency | HEPA, H14, 99.995% @ 0.3um | HEPA, H14, 99.995% @ 0.3um | |
| Exhaust Filter | Single | Single | |
| Downflow Velocity (m/s) | 0.3 | 0.3 | |
| Inflow Velocity (m/s) | 0.53 | 0.53 | |
| Illumination Intensity (Lux) | ≥1100 | ≥1200 | |
| Noise Level (dB(A)) | 61 | 64 | |
| Dimensions | |||
| Net/Gross Weight (kg) | 220/248 | 258/305 | |
| Internal Dimensions (W*D*H) (mm) | 900*610*680 | 1167*610*680 | |
| External Dimensions (W*D*H) (mm) | 1100*790*2200 | 1360*790*2200 | |
| Support Stand (mm) | 680 mm (standard), 680-900 mm adjustable (optional) | ||
| Sash Opening (mm) | 190 (Maximum 490) | 190 (Maximum 490) | |
| Alarms | |||
| Alarm Type | Audible and Flashing | Audible and Flashing | |
| Fan Alarm Silenced After Door Opens | Yes | Yes | |
| Sash Open / Abnormal Inflow | Yes | Yes | |
| Abnormal Downflow / Sash Open Beyond Limit | Yes | Yes | |
| Filter Clogging / Filter Damage | Yes | Yes | |
| Filter Life Low / UV Lamp Life Low | Yes | Yes | |
| Accessories and Others | |||
| UV Lamp | Yes | Yes | |
| Socket | 1 Socket | 1 Socket | |
| Valve Port | Standard with 2 Valve Ports | Standard with 2 Valve Ports | |
| Side Wall Service Taps | Standard gas and vacuum tap, optional compressed air and water tap | ||
| Antimicrobial Powder Coating / 316SS Work Surface | Optional | Optional | |
| Work Surface | One-piece | One-piece | |
| Touch Screen / Motorized Sash / Foot Switch | No | No | |
| Armrest | Yes | Yes | |
| Exhaust Duct Connection Kits | Optional | Optional | |
| Certificate | CE, TUV | CE, TUV | |
