Teknik Özellikler

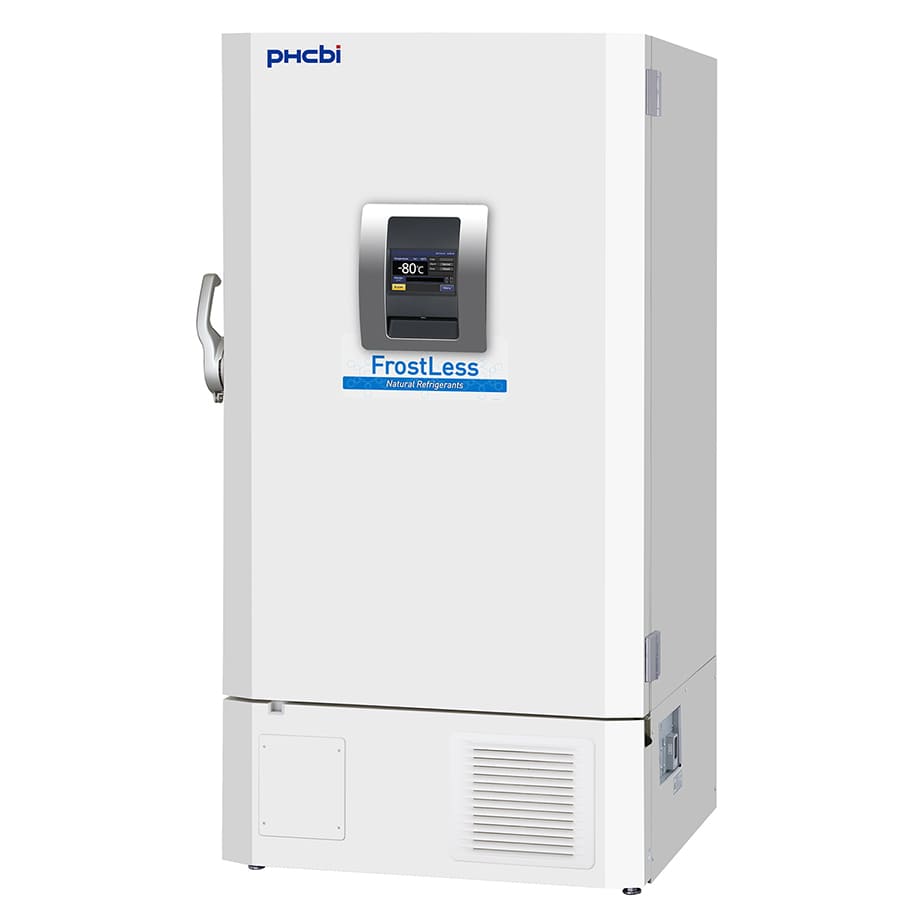

Model MDF-DU700ZH-PE
Dimensions
External dimensions (W x D x H) mm 1030 x 882 x 1993
Internal dimensions (W x D x H) mm 870 x 607 x 1400
Volume liters 725
Net weight kg 282
Capacity 2" Boxes 528
Performance
Cooling performance ºC -86
Temperature setting range ºC  - 40 to -90
Temperature control range ºC  - 40 to -86
Control
Controller Microprocessor control system
Display LCD Touchscreen Display
Temperature sensor Pt1000
Cooling
Cooling method Cascade
Compressors W 2 x 920
Refrigerant HC
Insulation material PUF / VIP Plus
Insulation thickness mm 80
Construction
Outer material Painted Steel
Inner material Painted Steel
Outer door pcs 1
Outer door lock Available

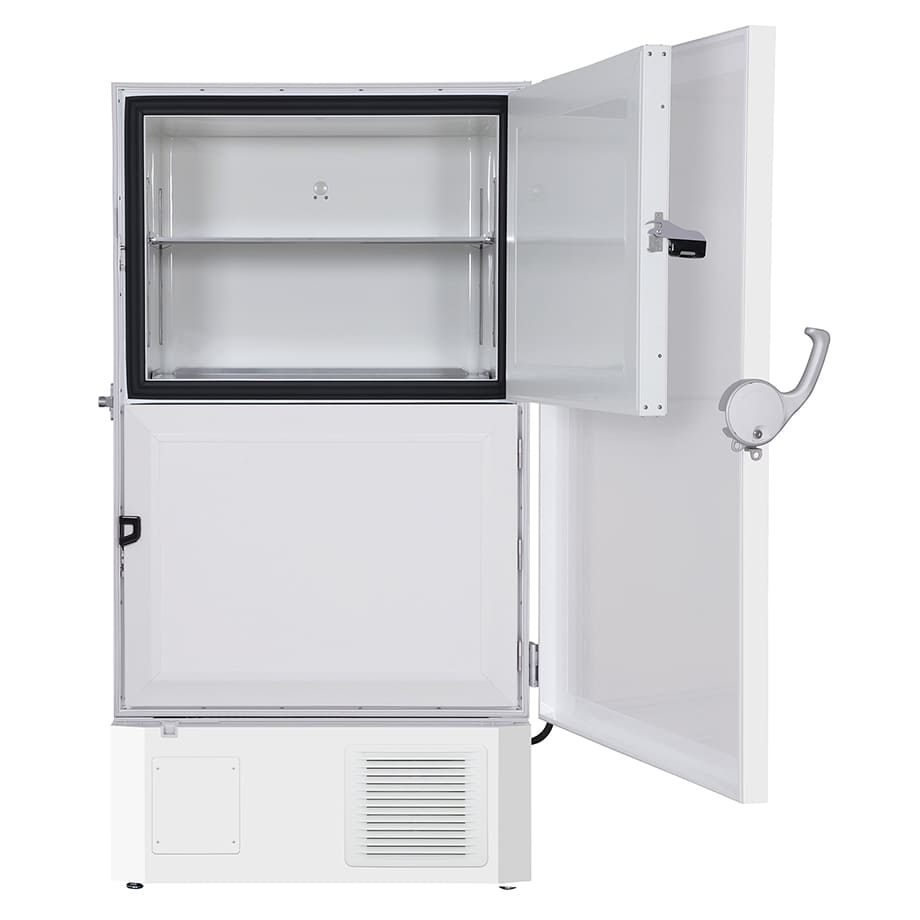

Inner doors pcs 2
Shelves pcs 2 adjustable, 1 special
Maximum load - per shelf kg 50
Maximum load - total 3) kg 520
Access port pcs 3
location rear x 1, bottom x 2
diameter Ø mm 17
Casters pcs 4 (2 leveling feet)
Alarms (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm)
Power failure V-B-R
High temperature V-B-R
Low temperature V-B-R
Filter V
Door open V-B
Electrical and Noise Level
Power Supply V 220/230/240
Frequency Hz 50
Noise Level dB(A) 52
Options
Liquid CO2 backup MDF-UB7-PW
Temperature recorders
 Circular type MTR-G85C-PE
Chart paper RP-G85-PW
 Ink pen PG-R-PW
 Continuous chart type MTR-85H-PW
 Chart paper RP-85-PW
 Ink pen DF-38FP-PW
 Recorder cover MDF-S3085-PW
