Teknik Özellikler

Model MDF-DU702VH-PE
Dimensions
External dimensions (W x D x H) mm 1030 x 882 x 1993
Internal dimensions (W x D x H) mm 870 x 600 x 1400
Volume liters 729
Net weight kg 278
Capacity 2” boxes 576
Performance
Cooling performance °C -86
Temperature setting range °C - 40 to -90
Temperature control range °C - 40 to -86
Control
Controller Microprocessor, non-volatile memory

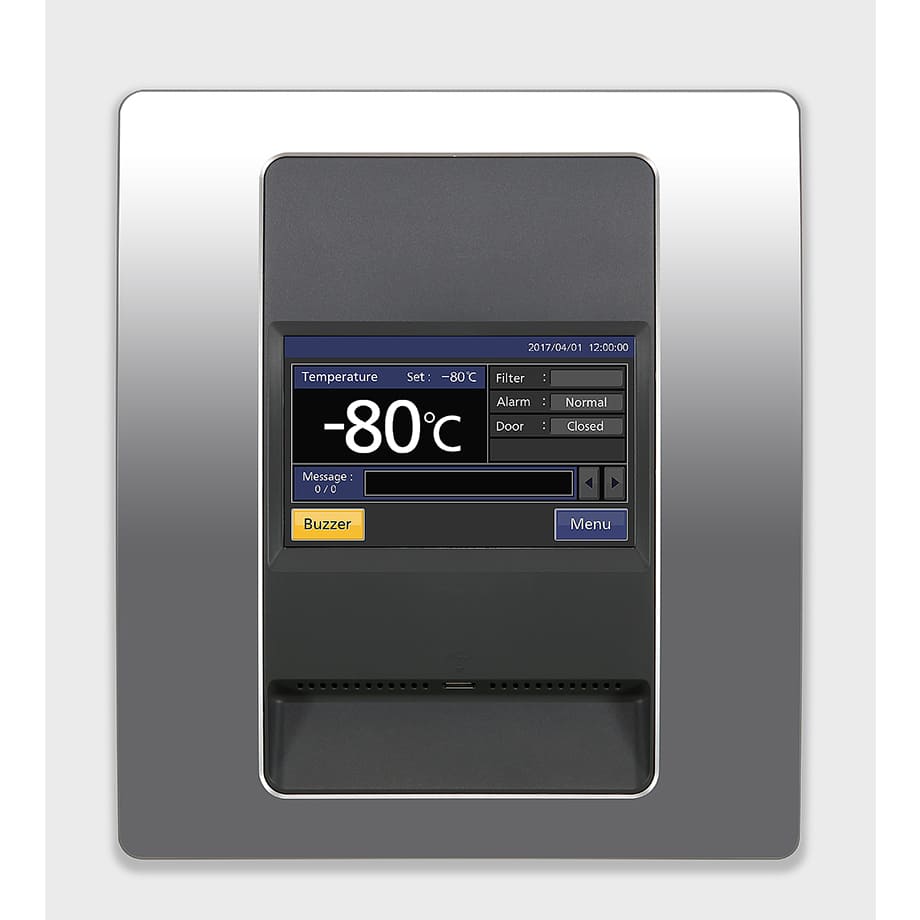

Display LCD Touchscreen Display
Temperature sensor Pt-1000
Cooling performance
Cooling system Cascade
Compressors W 2 x 750
Refrigerant HC
Insulation material PUF / VIP Plus
Insulation thickness mm 80
Construction
Outer material Painted steel
Inner material Painted steel
Outer door pcs 1
Outer door lock Available
Inner doors pcs 2
Shelves pcs 3
Maximum load - per shelf kg 50
Maximum load - total kg 515
Vacuum relief port 2 (1 automatic, 1 manual)
Access port pcs 3
location rear x 1, bottom x 2
diameter Ø mm 17
Casters pcs 4 (2 leveling feet)
Alarms (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm)
Power failure V-B-R
High temperature V-B-R
Low temperature V-B-R
Filter V
Door open V-B
Electrical and Noise Level
Power supply V 230
Power consumption kWh/24h 7,7
Frequency Hz 50
Noise level dB [A] < 52
Options

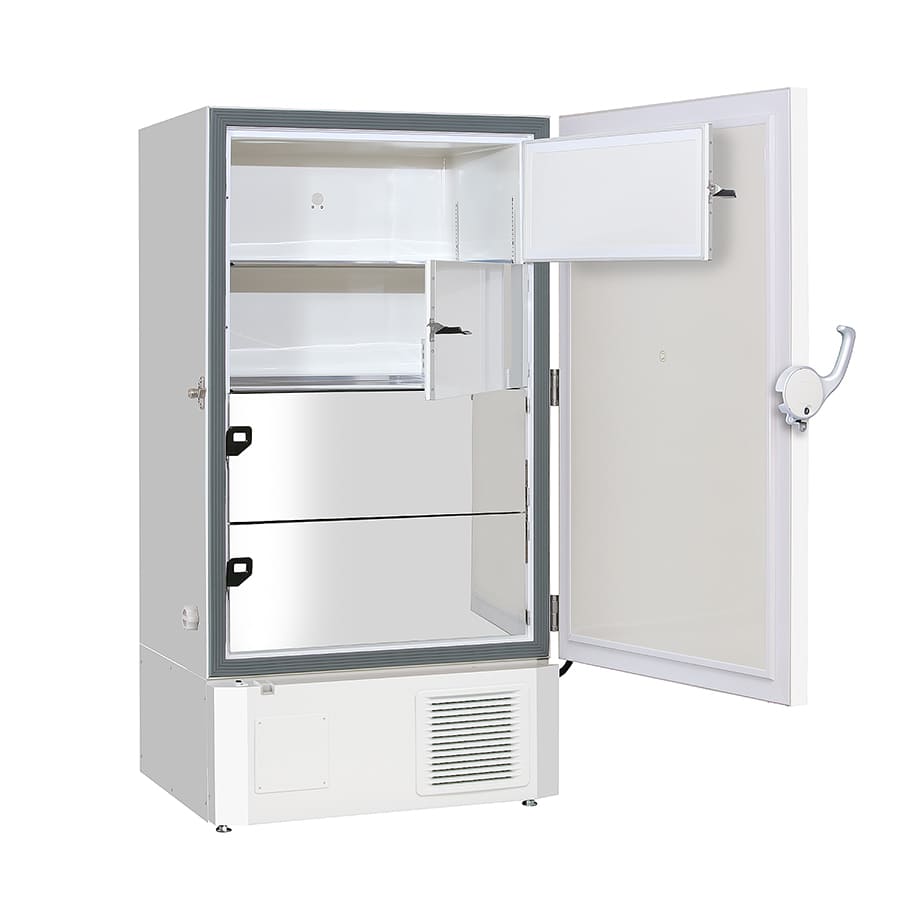

Small inner door kit Set of 5 MDF-7ID5-PW
Small inner door kit Set of 4 MDF-7ID4-PW
Liquid CO2 backup MDF-UB7-PW
Temperature recorders
Circular type MTR-G85C-PE
Chart paper RP-G85-PW
Ballpoint pen PG-R-PW
Continuous chart type MTR-85H-PW
Chart paper RP-85-PW
Ballpoint pen DF-38FP-PW
Recorder cover MDF-S3085-PW
