Teknik Özellikler

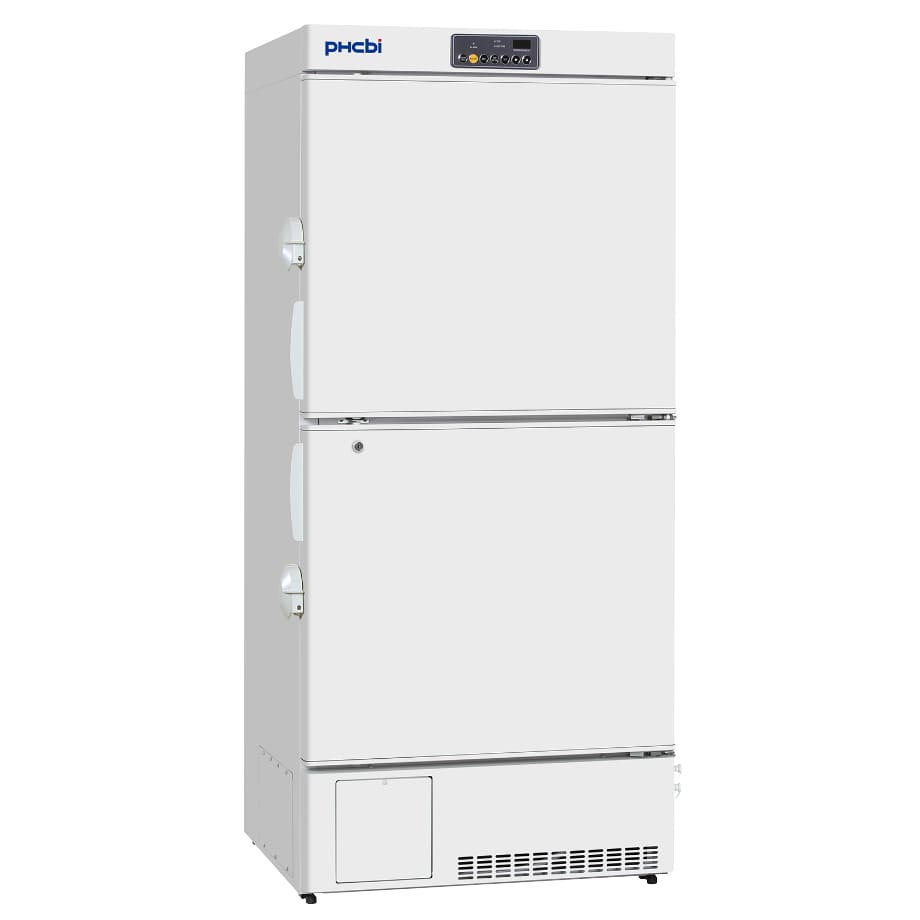

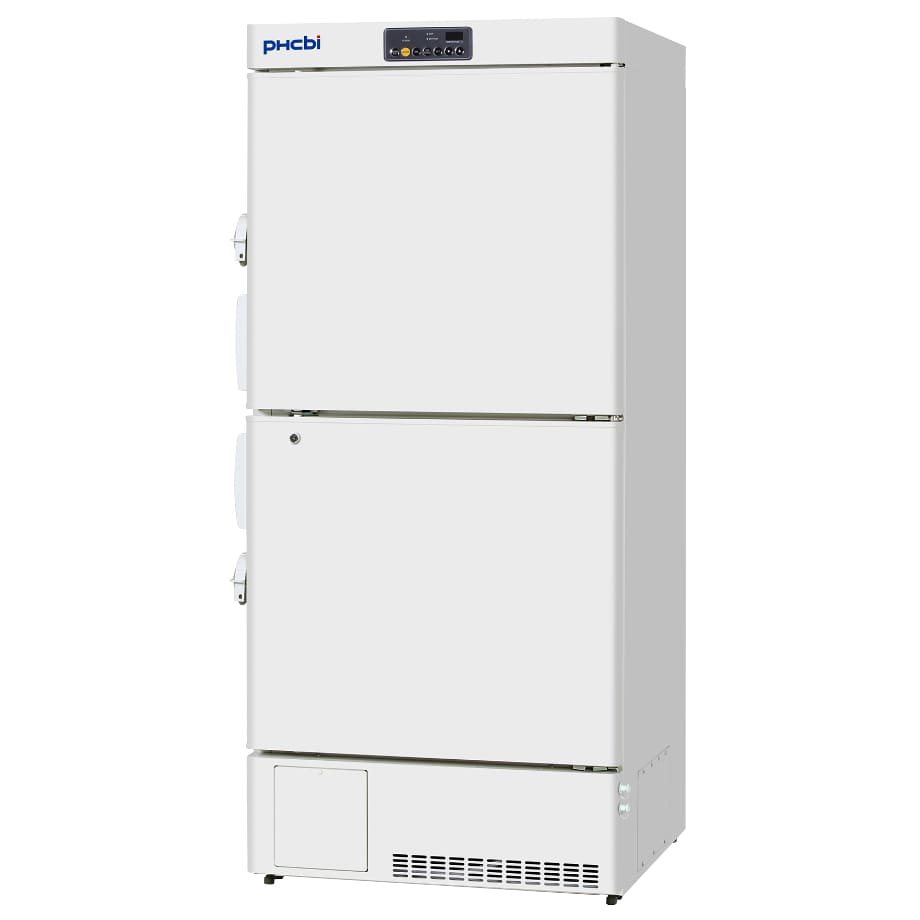

Model MDF-MU549DH-PE
External dimensions (W x D x H) mm 793 x 770 x 1802
Internal dimensions (W x D x H) mm 649 x 614 x 600 (2 compartments)
Volume litres 479
Net weight kg 165
Performance
Cooling performance °C -40
Temperature setting range °C -18 to -45
Temperature control range °C -20 to -40
Control
Controller Microprocessor, non-volatile memory
Display LED
Temperature sensor Thermistor
Refrigeration
Refrigeration system Direct
Compressors W 2 x 400 (used in the upper compartment and lower compartment respectively)
Refrigerant HC
Insulation material PUF
Insulation thickness mm 70
Construction
External material Painted steel
Internal material Painted steel
Outer doors pcs 2
Outer door lock Yes

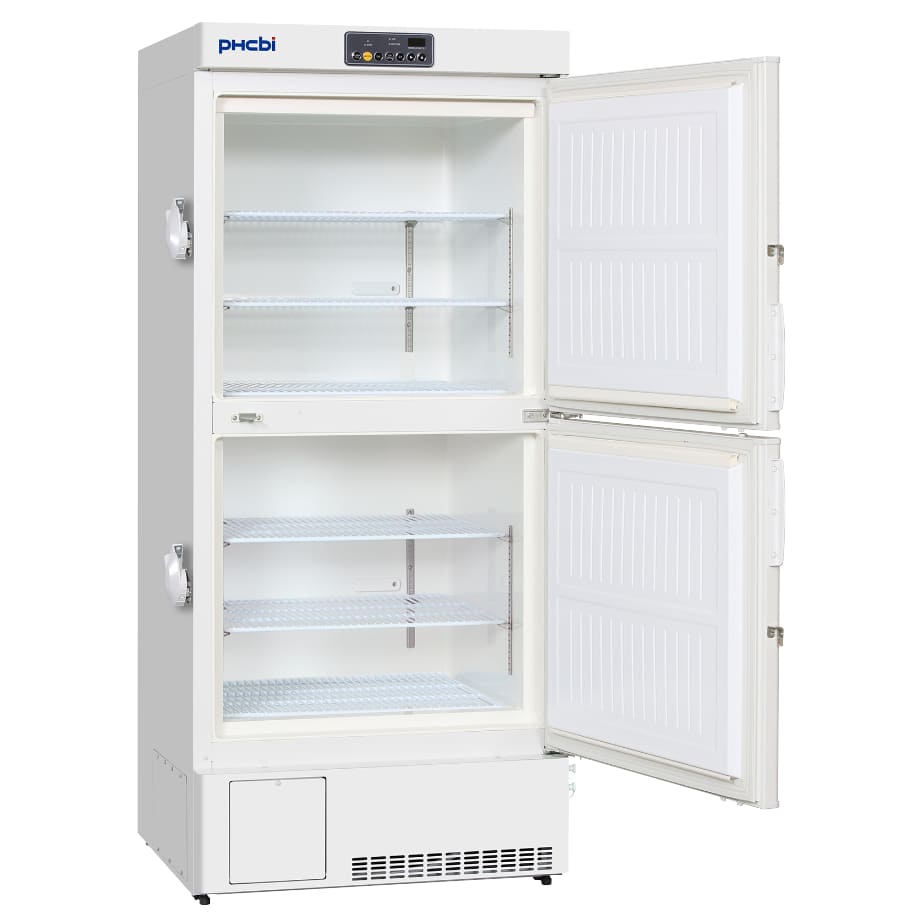

Shelves pcs 6
Maximum load - per shelf kg 30

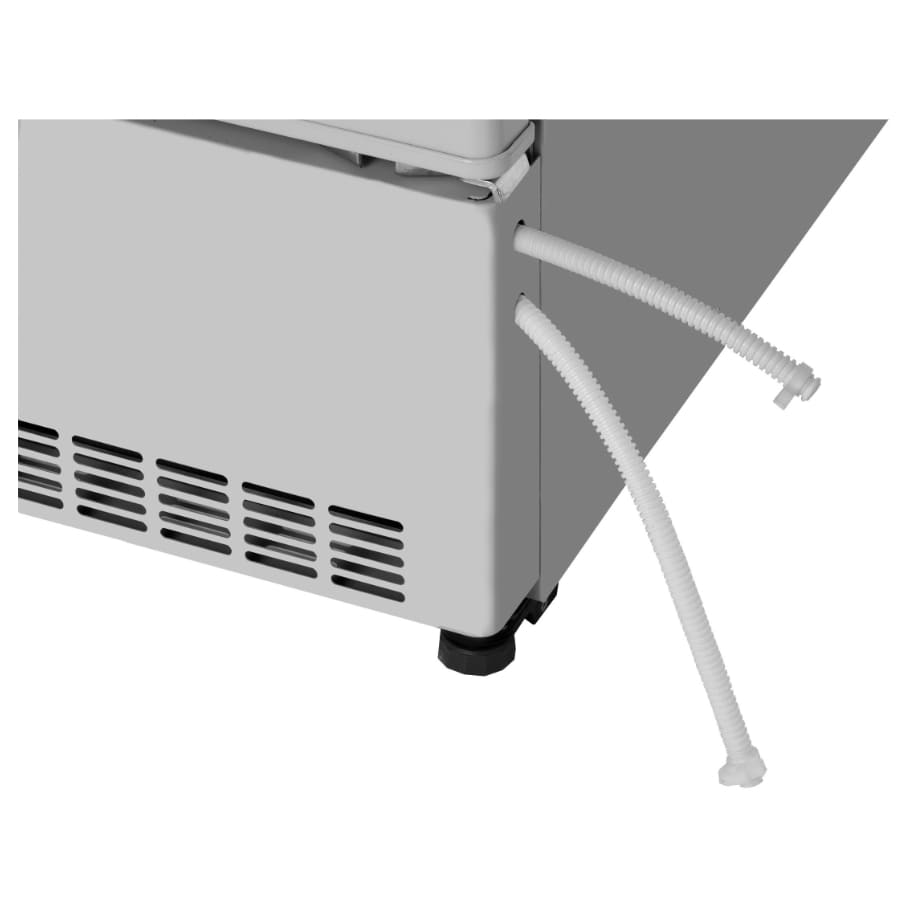

Access port pcs 2 (1 per compartment)
Position Rear
Diameter Ø mm 30
Castors pcs 4 (2 leveling feet)
Alarms (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power failure V-B-R
High temperature V-B-R
Low temperature V-B-R
Electrical and Noise Level
Power supply V 220/230/240
Frequency Hz 50/60
Noise level dB [A] 42
Accessories
Key set 1
Defrost spatula pcs 1
Options
• Circular type MTR-G85C-PE
Chart paper: RP-G85-PW
Ink pen: PG-R-PW
Recorder housing: MDF-S740T-PW (for upper side) MPR-S7-PW (for lower front)
• Continuous strip type MTR-4015LH-PE
Chart paper: RP-40-PW
Recorder housing: MPR-S30-PW (for lower front)

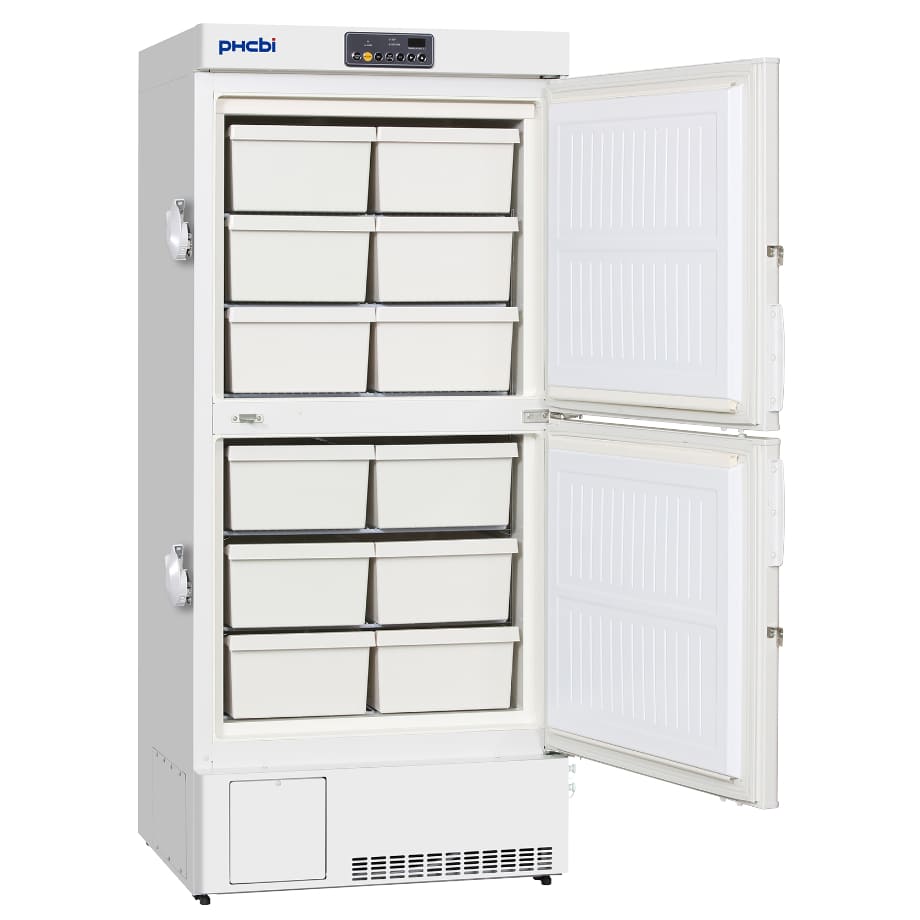

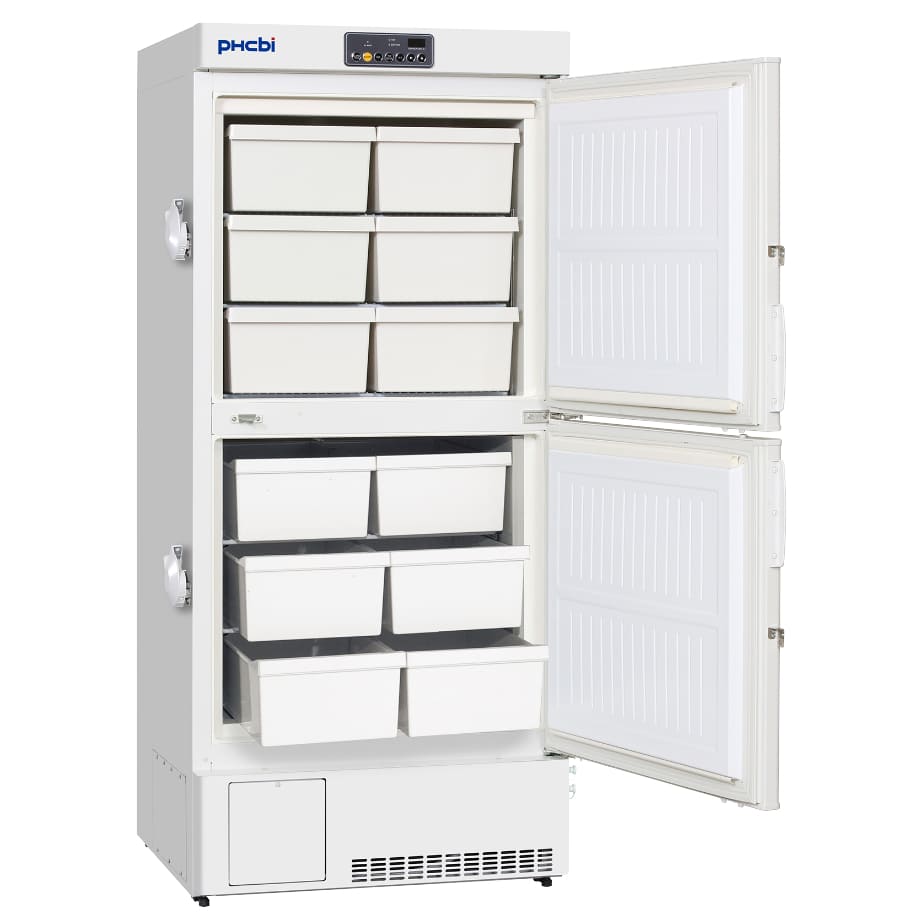

Storage container MDF-05SC-PW (2 pcs/set), 6 sets/freezer
(Internal dimensions) mm W280 x D552 x H157
