Teknik Özellikler

Model MDF-MU339HL-PE
External dimensions (W x D x H) mm 616 x 770 x 1802
Internal dimensions (W x D x H) mm 472 x 614 x 1262
Volume liters 369
Net weight kg 122
Performance
Cooling performance °C -30
Temperature setting range °C -18 to -35
Temperature control range °C -20 to -30
Control
Controller   Microprocessor, non-volatile memory
Display   LED
Temperature sensor   Thermistor
Cooling
Cooling system   Direct
Compressors W 400 (inverter control)
Refrigerant   HC
Insulation material   PUF
Insulation thickness mm 70
Construction
Exterior material   Painted steel
Interior material   Painted steel
Outer door pcs 1
Outer door lock   Yes
Shelves pcs 6
Maximum load - per shelf kg 30
Access port pcs 1
Position   Rear
Diameter Ø mm 30
Casters pcs 4 [2 leveling feet]
Alarms (R = Remote alarm, V = Visual alarm, B = Buzzer alarm)
Power failure   V-B-R
High temperature   V-B-R
Low temperature   V-B-R
Electrical and Noise Level
Power supply V 220/230/240
Frequency Hz 50/60
Noise level dB [A] 42
Options
Temperature recorder (circular type)
• Chart paper   RP-G85-PW
• Ballpoint pen   PG-R-PW
• Recorder housing   MPR-S7-PW
Temperature recorder (continuous strip type)   MTR-4015LH-PE
• Chart paper   RP-40-PW
• Recorder housing   MPR-S30-PW

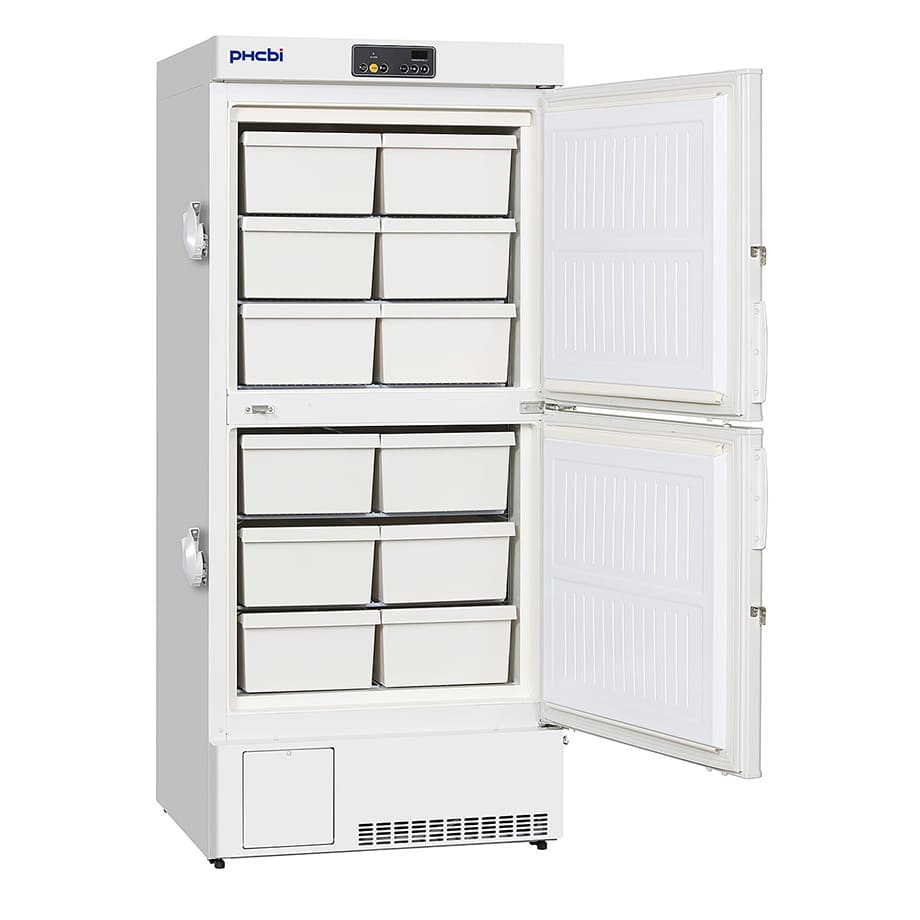

Storage box   MDF-03SC-PW (2 pcs/set, 3 sets/freezer)
(Internal dimensions) mm W420 x D552 x H157
