Teknik Özellikler

Model MDF-DU901VHL-PE
External dimensions (W x D x H) mm 1150 x 870 x 1993
Internal dimensions (W x D x H) mm 1010 x 600 x 1400
Volume liters 845
Net weight kg 328
Capacity 2” boxes 672
Performance
Cooling performance °C -86
Temperature setting range °C - 50 to -90
Temperature control range °C - 50 to -86
Control
Controller Microprocessor, non-volatile memory
Display LCD Touchscreen Display
Temperature sensor Pt-1000
Performance
Cooling system Cascade
Compressors W 2 x 1000
Refrigerant HC
Insulation material PUF / VIP Plus
Insulation thickness mm 70
Construction
Outer material Painted Steel
Inner material Painted Steel
Outer door pcs 1

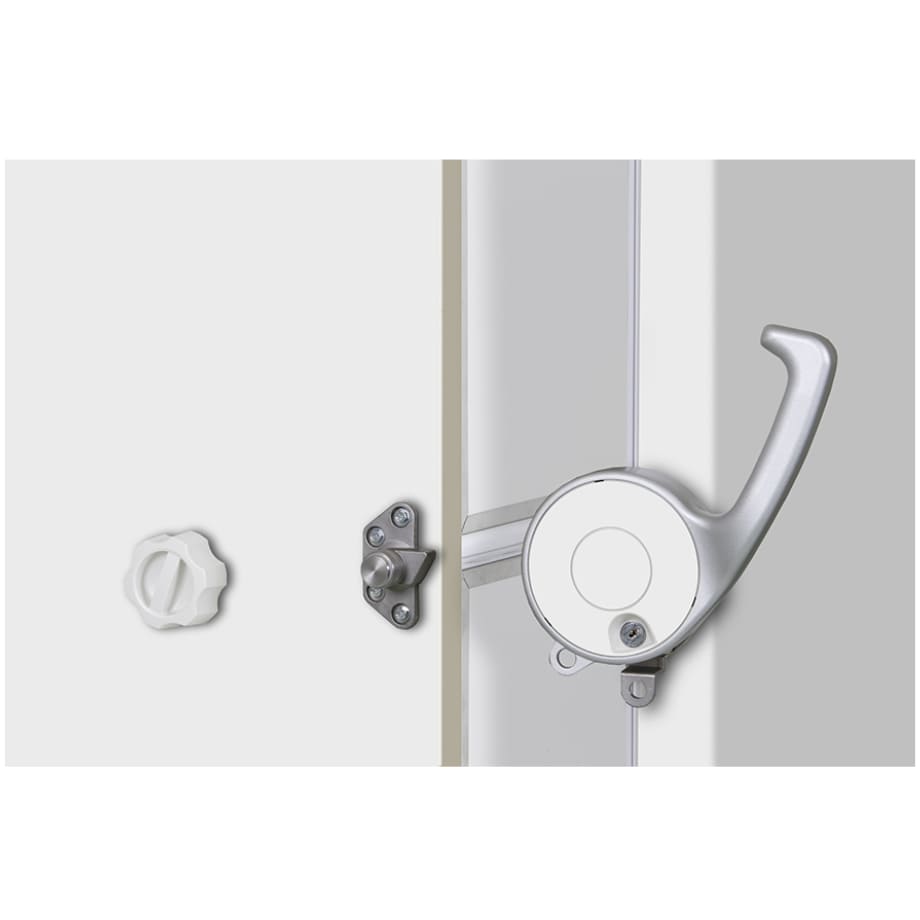

Outer door lock Available

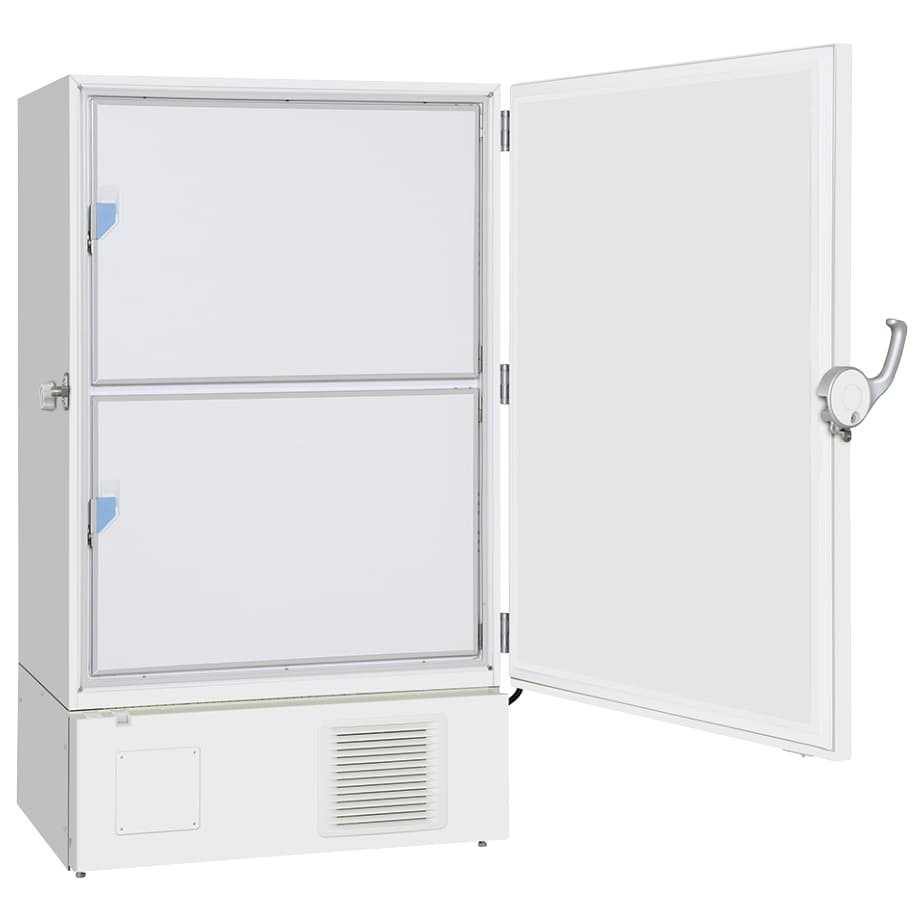

Inner doors pcs 2 pcs (insulated)

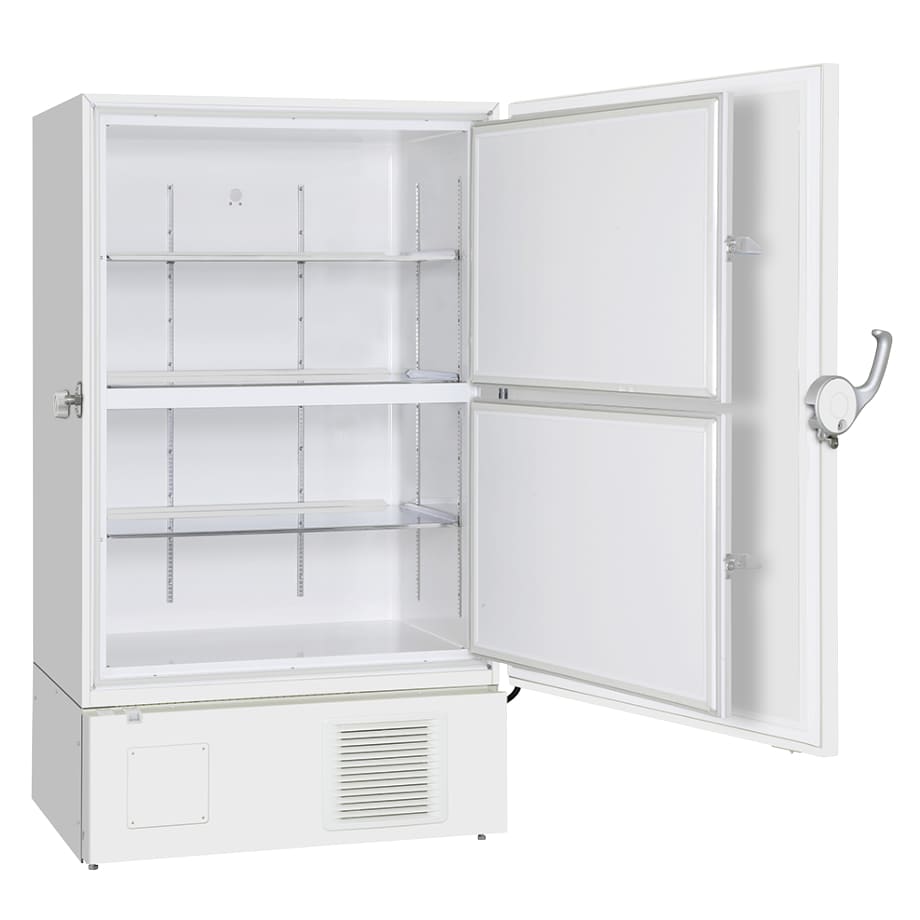

Shelves pcs 3
Maximum load - per shelf kg 50
Maximum load - total 3) kg 415
Vacuum relief port Available
Access port pcs 3
location rear x 1, bottom x 2
diameter Ø mm 17
Casters pcs 4 (2 leveling feet)
Alarms (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power failure V-B-R
High temperature V-B-R
Low temperature V-B-R
Filter V
Door open V-B
Electrical and Noise level
Power supply V 230
Power consumption kWh/24h 8,7
Frequency Hz 50
Noise level dB [A] < 52
Options

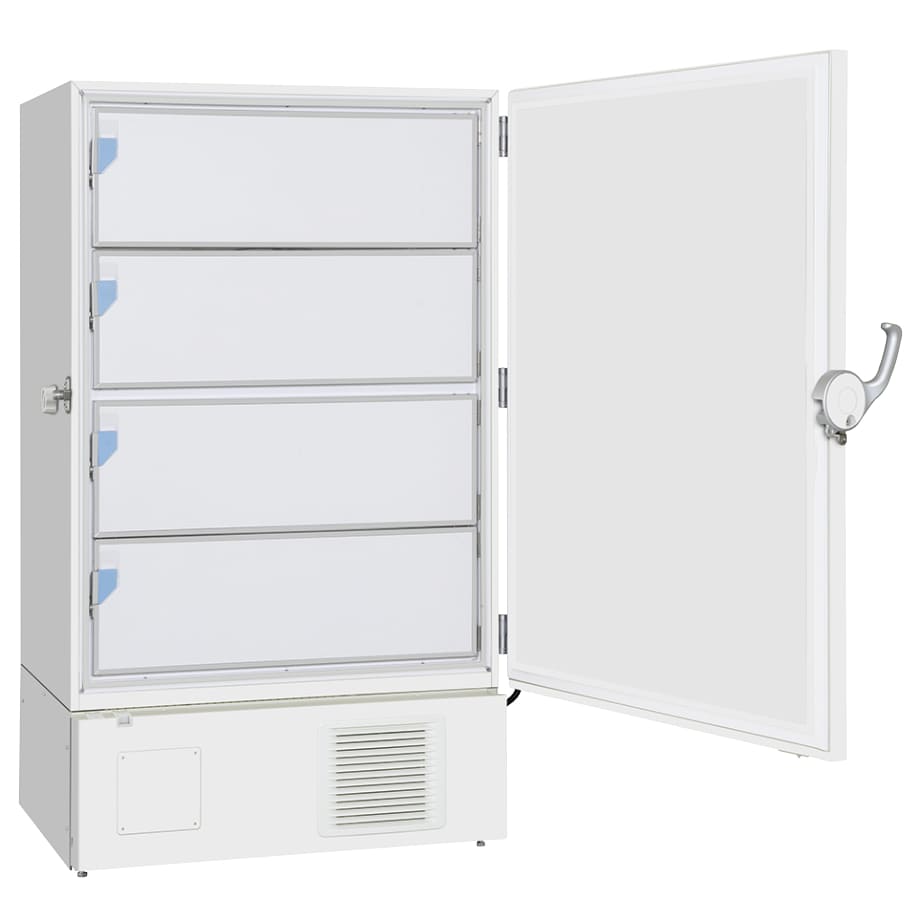

Small inner door kit Set of 2 MDF-9ID-PW (max 2)
Small inner door kit MDF-UB7-PW
Liquid CO2 backup
Temperature recorders MTR-G85C-PE
Circular type RP-G85-PW
Chart paper PG-R-PW
Ballpoint pen MTR-85H-PW
Continuous chart type RP-85-PW
Chart paper DF-38FP-PW
Ballpoint pen MDF-S3085-PE
