Teknik Özellikler

Technical Specifications

  • • Lightweight: Total empty weight is only 3 kg.

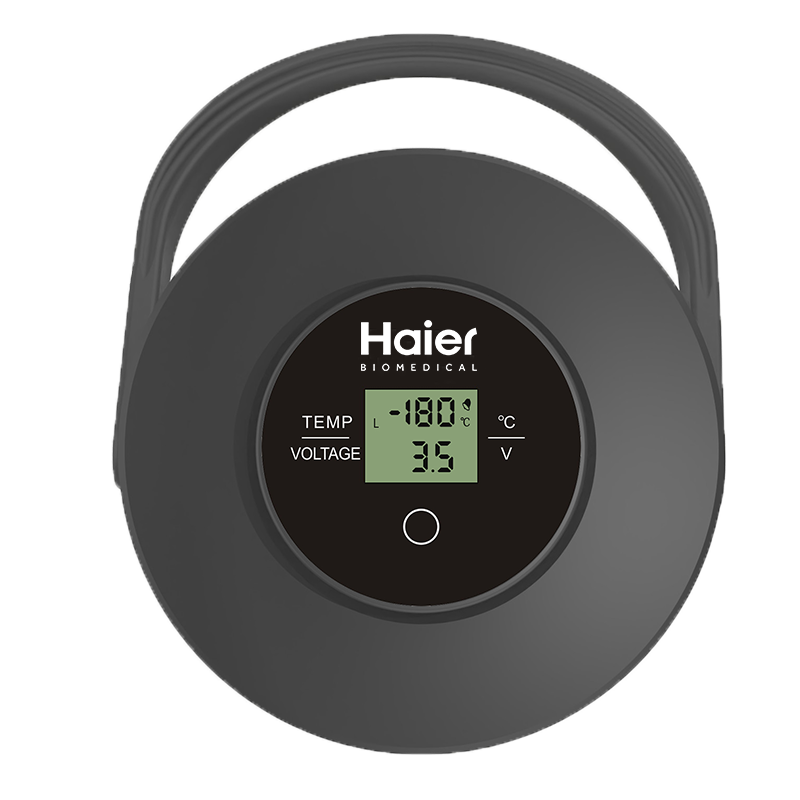

  • • Temperature Indicator: Real-time visual temperature monitoring; dustproof and waterproof display.

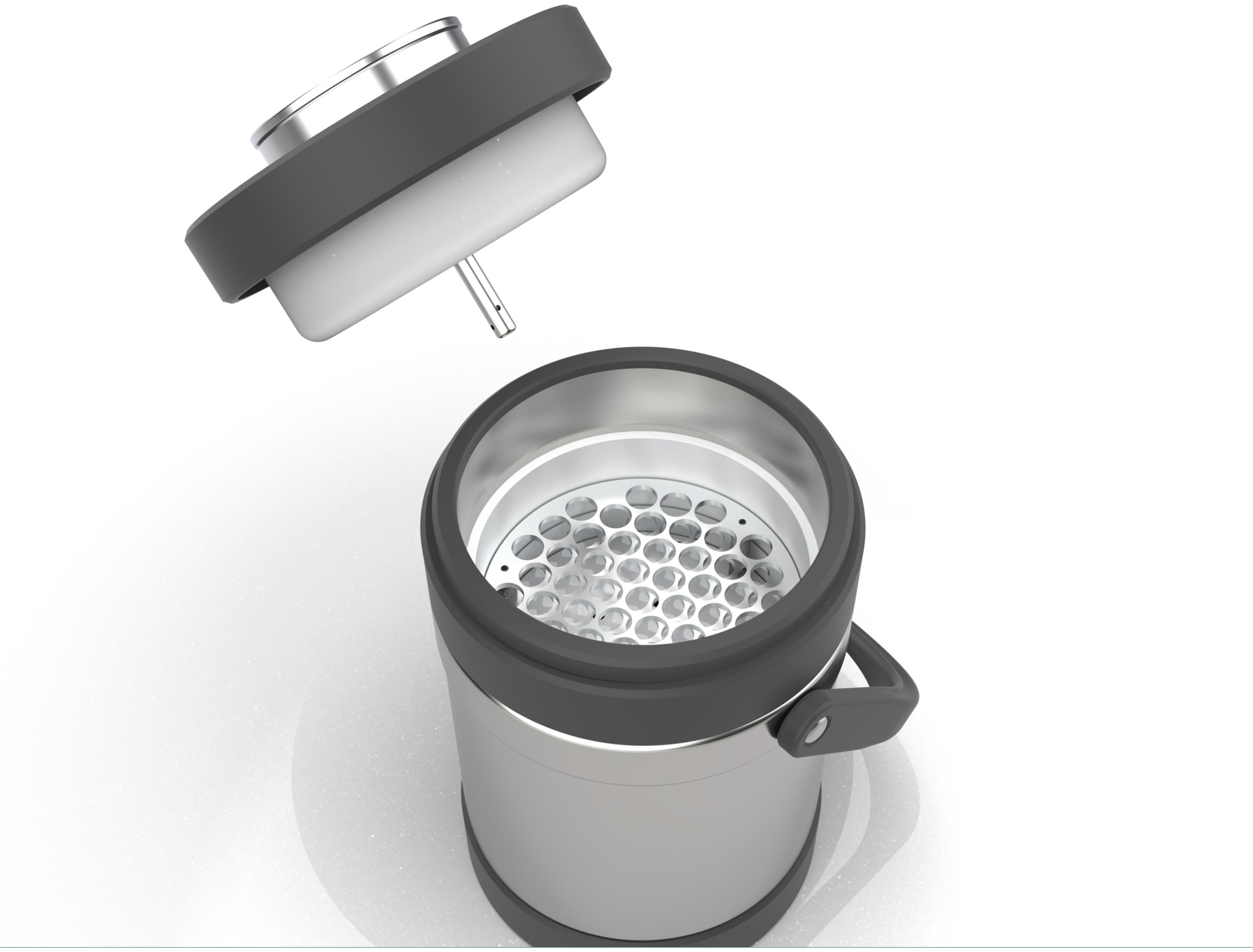

  • • Compatible with Multiple Tube Specifications: Bio-2T model; compatible with 1.2 ml, 1.5 ml, 1.8 ml, 2.0 ml, and 5.0 ml cryogenic tubes.
  • • High-Performance Thermal Insulation: Thickened insulation material and excellent thermal performance keep the operating temperature inside the tank stable between -135°C and -196°C.
Feature Technical Values
Outer Diameter (O.D.) (mm) 156
Inner Diameter (I.D.) (mm) 125
Depth (mm) 190
Height (mm) 262
Total Empty Tank Weight (kg) 3
Liquid Nitrogen Capacity (L) 2
Liquid Phase Holding Time (hours) 8
Vapor Phase Holding Time (hours) 6
Internal Cryotube Capacity (2 mL) 54 pcs
Operating Temperature (°C) -135 ~ -196
Ambient Temperature (°C) 20 ~ 40
