Easy Access

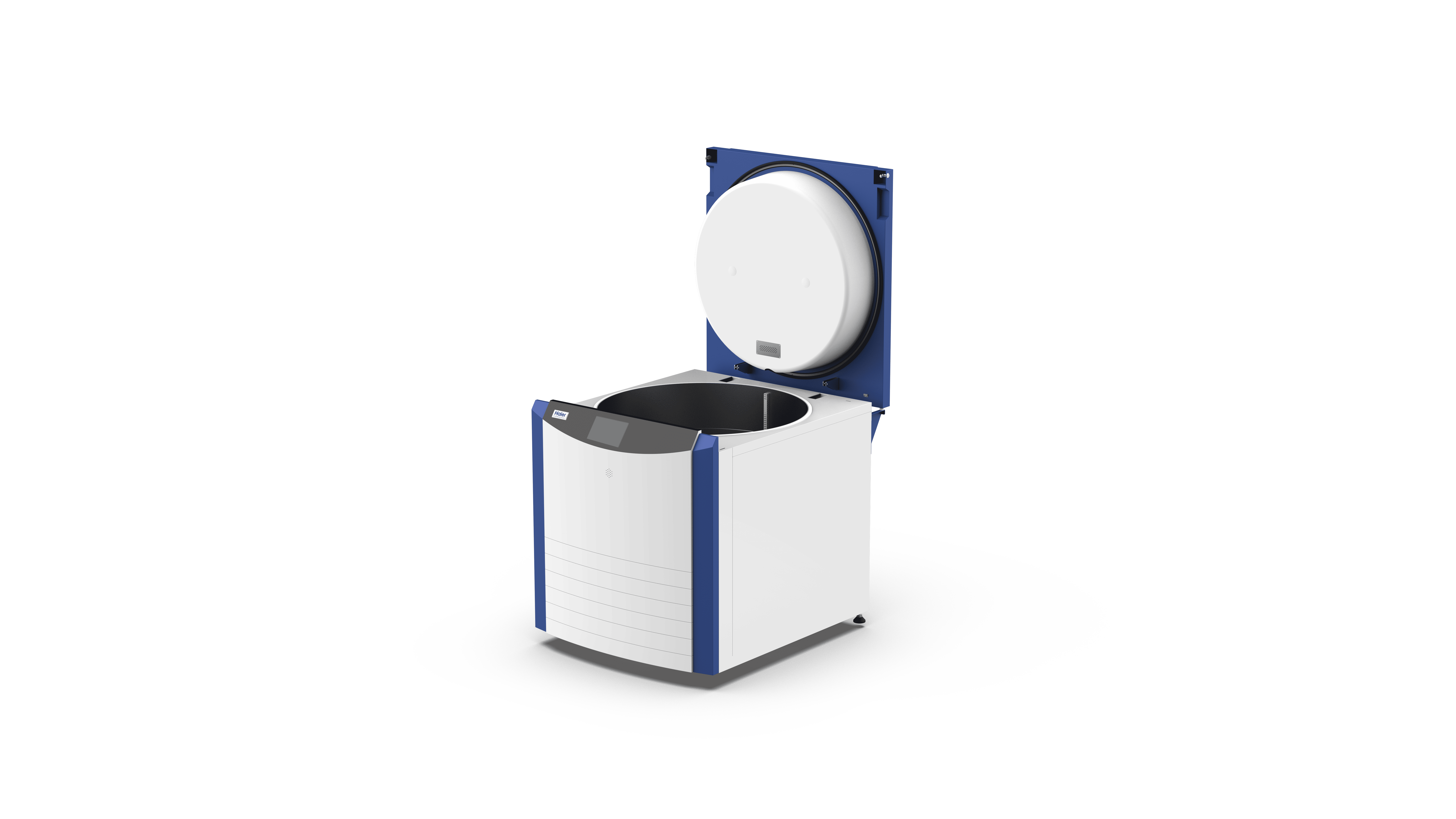

Thanks to the full-opening design on the top of the product and the hydraulic lid-opening feature, it saves energy and makes storing and retrieving samples easier.


Reduced Frosting and Icing

The brand-new lid and interlayer exhaust structure effectively minimizes ice formation at the exhaust port.


Brand-New Smart Monitoring System

The system is designed with the latest smart monitoring application and paired with an IoT module that can connect to Haier’s big data cloud platform, enabling remote data transmission. Three displays are integrated, and it provides remote alarm access via the app, email, and other options.


Highest Level of Safety

Dual locks ensure samples are stored more securely. The liquid nitrogen filter effectively reduces impurities, extending the service life of the entire unit.


Ergonomic Design

  • • Built with a dedicated USB interface and supports USB data transfer.
  • • Universal casters at the bottom make it easy to move.
  • • The product comes with an adjustable rear brake, making it easy to secure and stabilize.
  • • Even when the external power supply is off, the device can continue operating on battery power.


Feature CryoBio 11Z (Vapor) CryoBio 11Z (Liquid) CryoBio 20Z (Vapor) CryoBio 20Z (Liquid) CryoBio 34Z (Vapor) CryoBio 34Z (Liquid)
2 mL Vial Capacity 11000 13000 20350 24050 33550 42900
5×5 Rack (Vertical Type) - - 10 10 10 8
10×10 Rack (Vertical Type) 10 10 16 16 28 31
5×5 Freezer Box - - 110 130 110 104
10×10 Freezer Box 110 130 176 208 308 403
Number of Vertical Rack Levels 11 13 11 13 11 13
Liquid Nitrogen (LN2) Volume (L) -- 200 -- 340 -- 550
External Dimensions (W×D×H) (mm) -- 730 × 1035 × 1190 -- 910 × 1170 × 1190 -- 1100 × 1400 × 1190
Usable Internal Height (mm) -- 790 -- 790 -- 790
Static Evaporation (L/day) -- 7 -- 10 -- 12
Empty Weight (kg) -- 209 -- 301.5 -- 400
Inner Neck Diameter (mm) -- 610 -- 790 -- 1000
Fully Loaded Weight (kg) -- 357 -- 543 -- 821
