Large-Scale Cryogenic Storage Features

  • Large-scale storage capacity ranging from 13,000 to 94,875 standard 2 ml cryovials
  • Vapor-phase storage to prevent cross-contamination
  • Excellent temperature uniformity
  • One-touch defogging for easier access
  • Liquid nitrogen splash protection ensures safer operation
  • Suitable for storing all types of biological samples
Model LN2 Capacity (L) 2 mL Capacity Inner Neck Diameter (mm) Working Height (mm)
YDD-1000-465 1014 51000 465 1090

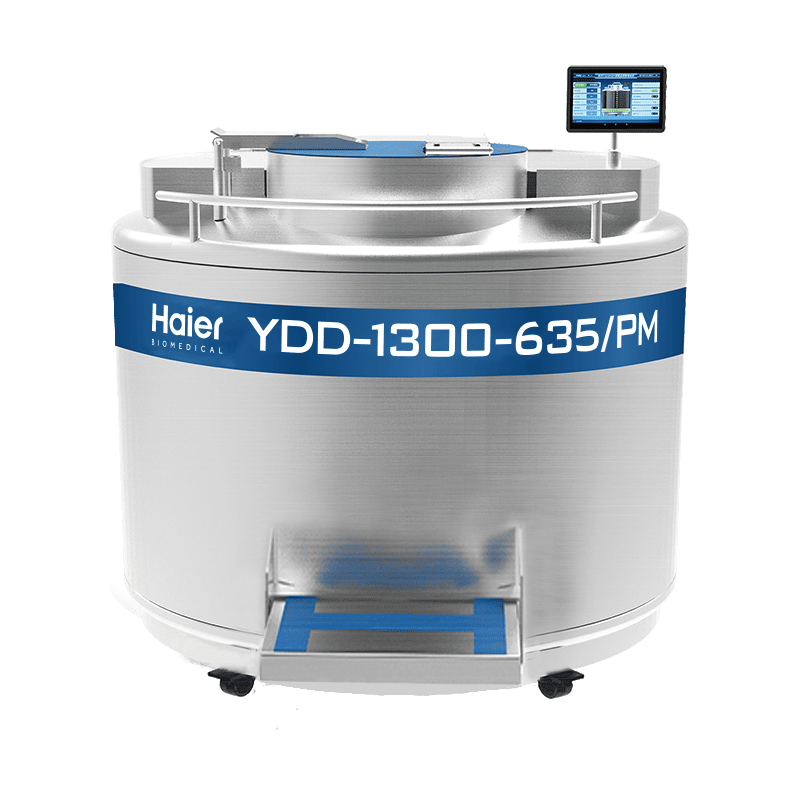

YDD-1300-635 1340 58500 635 997
YDD-1600-635 1660 78050 635 967
YDD-1800-635 1880 94875 635 1097
YDD-350-326 350 13000 326 1263
YDD-370-326 370 15600 326 1098
YDD-450-326 460 21000 326 1212

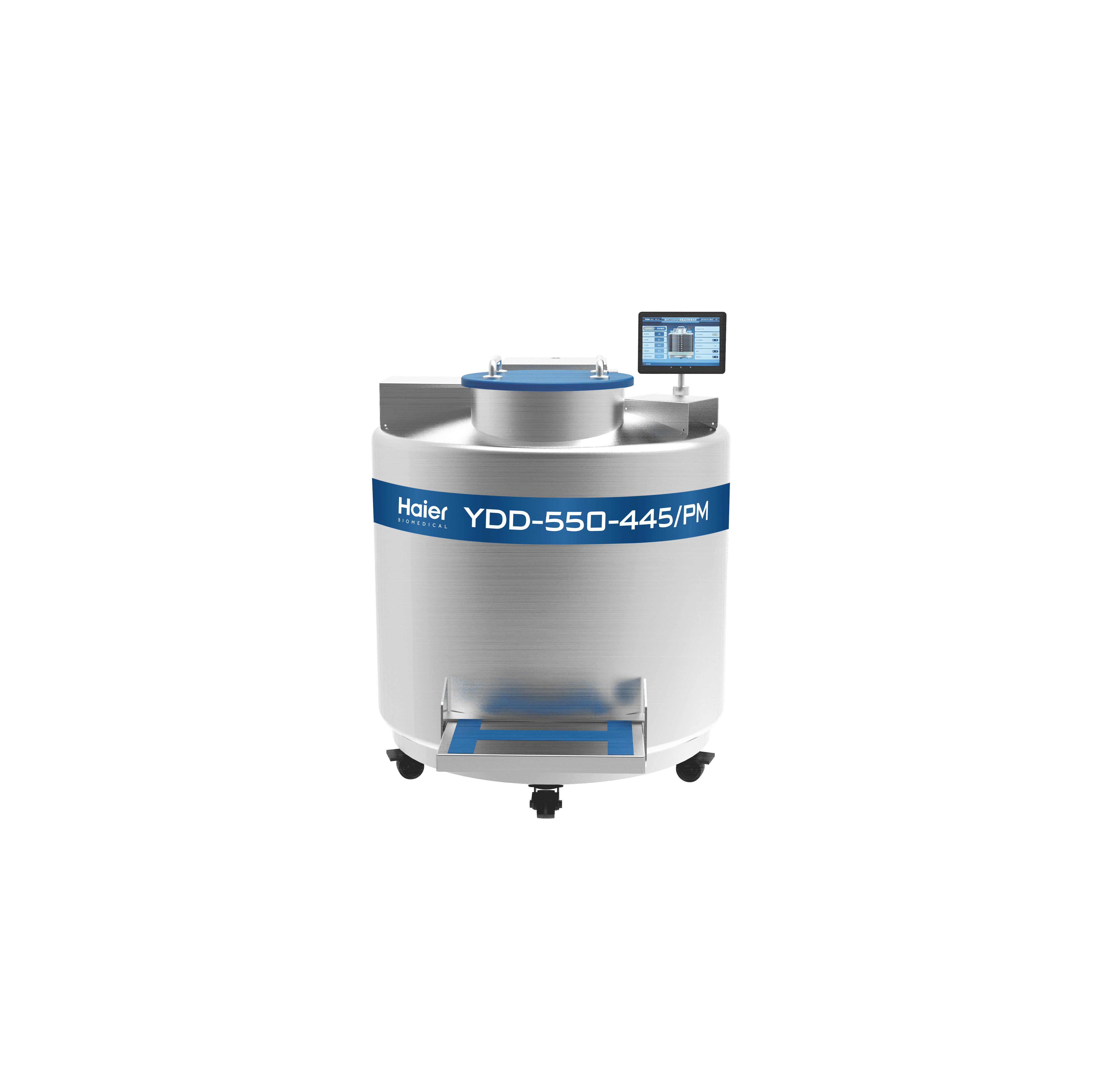

YDD-550-445 587 27000 445 970

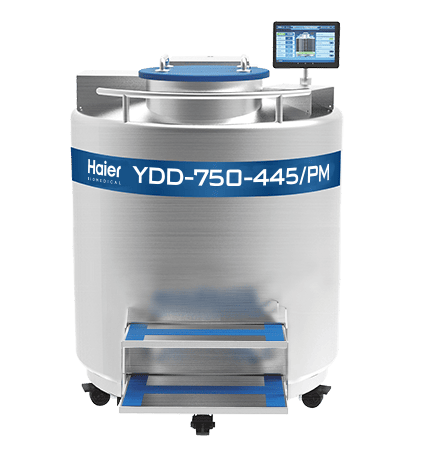

YDD-750-445 783 37800 445 995

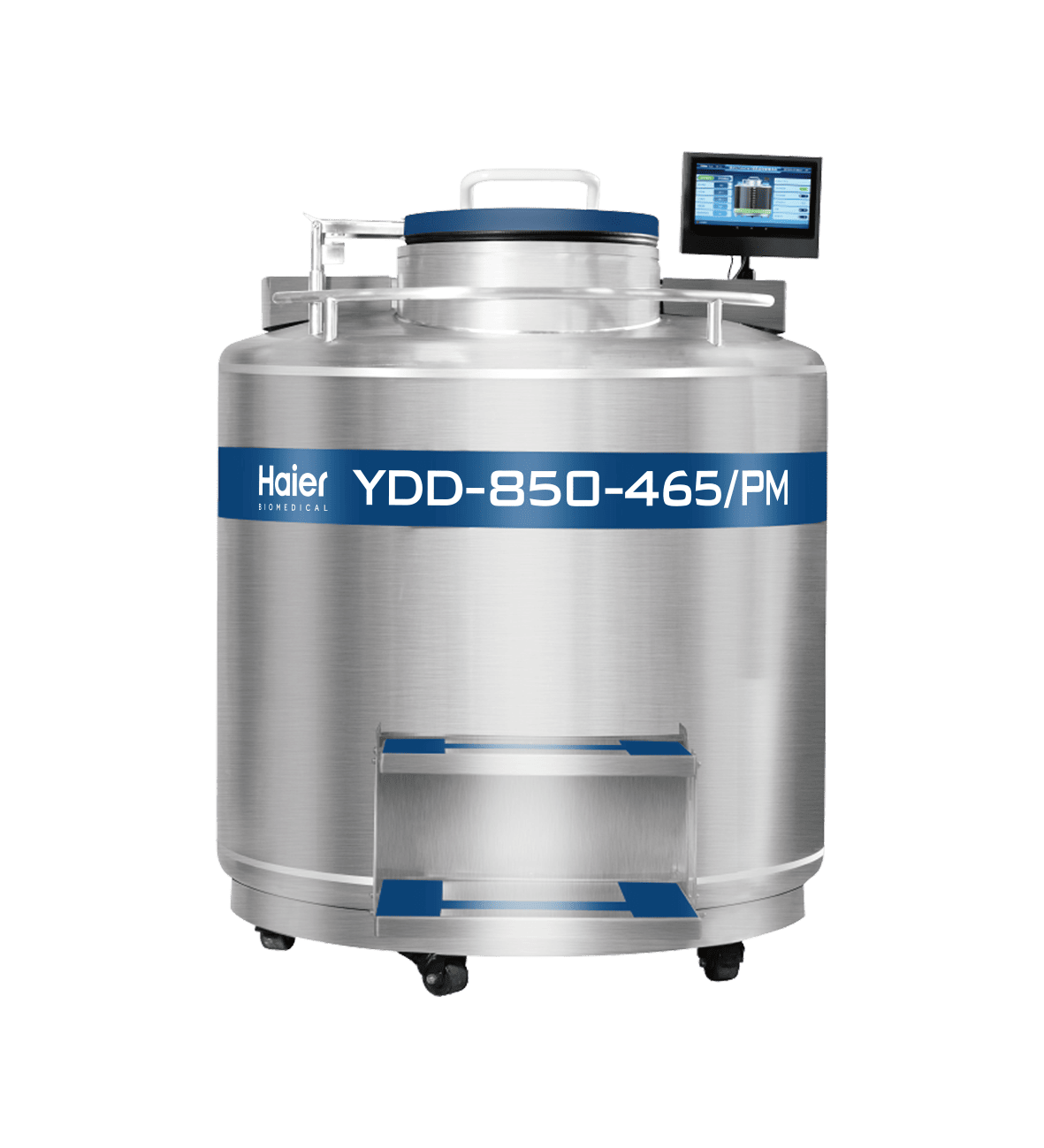

YDD-850-465 890 42900 465 980
