Teknik Özellikler

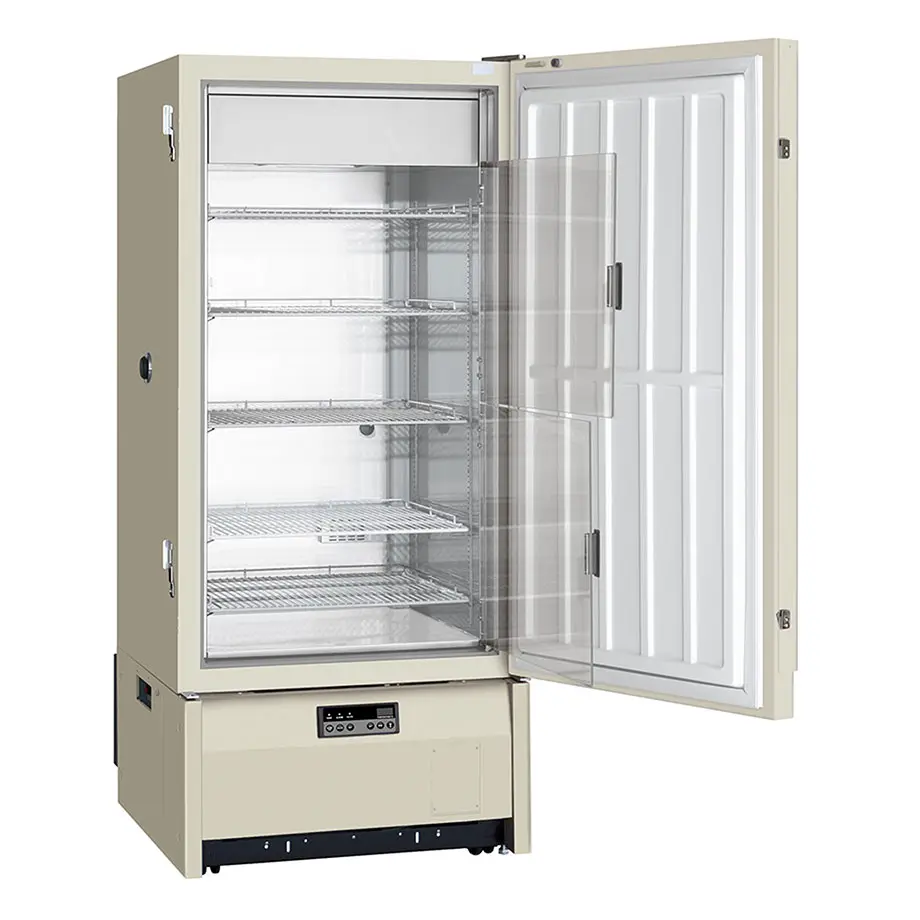

Model MDF-U443-PE
External dimensions (W x D x H) mm 800 x 832 x 1810
Internal dimensions (W x D x H) mm 640 x 615 x 1090
Volume litres 426, 300 FFP packs (300 ml)
Net weight kg 213
Capacity 2” box 256
Performance
Cooling performance °C -40
Temperature setting range °C -15 to -44
Temperature control range °C -15 to -40
Control
Controller Microprocessor, non-volatile memory
Display LED
Temperature sensor Thermistor
Refrigeration
Refrigeration system* Cascade + forced air circulation
Compressors W H:400/L:750
Refrigeration circuit High Stage Low Stage
Refrigerant R-513A R-449A
Refrigerant charge g 250 145
GWP of refrigerant per refrigeration circuit 631 1397
Total refrigerant charge (CO₂ equivalent) t 0.360
Insulation material PUF
Insulation thickness mm 70
Construction
External material Painted steel
Internal material Stainless steel
Outer door pcs 1
Outer door lock Yes
Inner doors pcs 2 (acrylic)
Shelves pcs 5
Maximum load - per shelf/container/basket kg 50
Maximum load - total kg 200
Access port pcs 1
Position Left
Diameter Ø mm 40
Internal fluorescent lamp Yes
Castors pcs 4 (2 leveling feet)
Alarms (R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power failure V-B-R
High temperature V-B-R
Low temperature V-B-R
Filter V-B
Door open V-B
Electrical and Noise Level
Power supply V 230V 50Hz single-phase
Frequency Hz 50/60
Noise level dB [A] 51
Options
Storage systems Custom-made drawer systems on request
• Circular type Not applicable
• Continuous strip type MTR-4015LH-PE MTR-85H-PW
Setting range (-40°C to +14°C) (-100°C to +50°C)
Chart paper RP-40-PW RP-85-PW
Ink pen included with recorder DF-38FP-PW
Recorder housing MPR-S30-PW Not applicable
